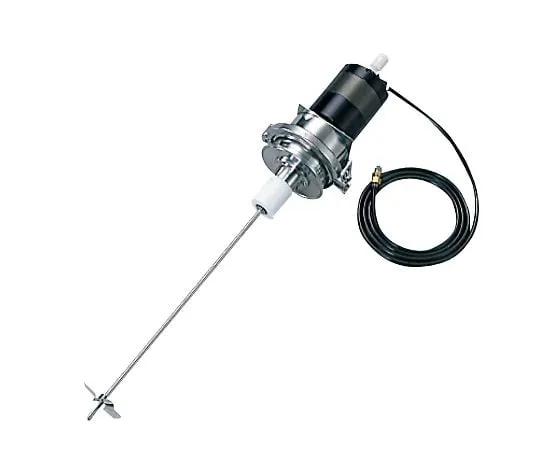

64-1185-54 Air Motor Stirrer AG-02-AM 17303160
Product Description
Product Model: 64-1185-54Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1185-54
Product Brand: ADVANTEC
Features
- Used in combination with a jacket type tank to control the temperature of the stock solution uniformly.
Spec
- Driving pressure: 0.20 MPa to 0.59 MPa
- Air (nitrogen gas) consumption: 0.2 m3/min (Original Pressure: 0.59 MPa, Rotational Speed: 400 rpm)
- Rotational Speed Control Range: 30 rpm to 400 rpm
- Agitable Viscosity: Maximum 0.40 Pa · s
- maximum working pressure : 0.39 for MPa
- Maximum operating temperature: 60 °C
- materials of liquid contact part : SUS304
- Stirring Blade: 4 pieces Blade φ 80 mm
- Mounting Shape: 4S Ferrule
- Shaft Length (mm): 260
- Mass (kg): 6
