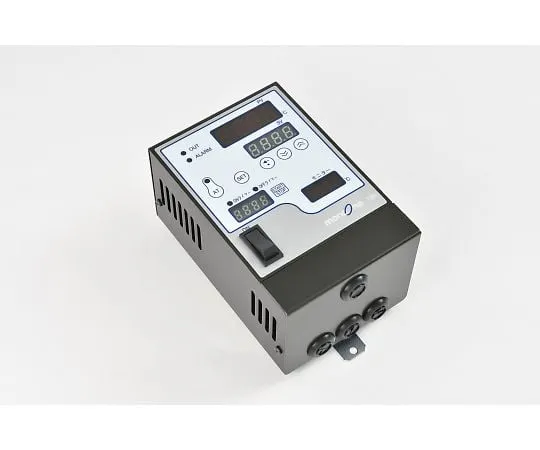

64-3426-85 Digital temperature controller (Mono-One 120) monoOne-120
Product Description
Product Model: 64-3426-85Product Brand: ThreeHigh Featu […]
Contact Us
Product Details
Product Model: 64-3426-85
Product Brand: ThreeHigh
Features
- RoHS2 compliant product
- Simultaneously monitors the temperature of the heater and the object to be heated, and has a function to prevent overheating.
- Easy, safe, compact design, easy to *** for everyone.
- Industry's first! Product warranty period 5 years
- Utility model registered
- New features added! Added display switching function for Celsius [°C] Fahrenheit [°F]! (Lot No.: 2112001 or later)
- * Update: For better safety, anti-twist clamps have been installed on the lower part of the connector of the accessory temperature sensor. (As of January 27, 2022)
Spec
- Size: (Portrait) 165 mm x (Landscape) 110 mm x (Depth) 85 mm
- Weight : about 1.3 kg (Excluding Protrusion and Mounting metal bracket)
- power supply Voltage : 90 VAC to 240 V (single phase)
-
Input: thermocouple (K, J, T, E, R, S, B)
, platinum resistance thermometer (Pt 100 Ω)
- Output Format: SSR (non-contact)
- Output rating: 15 A or Less
- Auxiliary output: 250 VAC 3 A
- Power Consumption: 10 VA or less
- Permissible ambient conditions: temperature (0 to 40 ° C)/humidity (35 to 85% rh
- Withstand voltage: 1800 VAC 1 second
- Mounting: tabletop, Wall Mounting, DIN Rail Mounting Plate (Options), 5-Stage Stand (Options)
