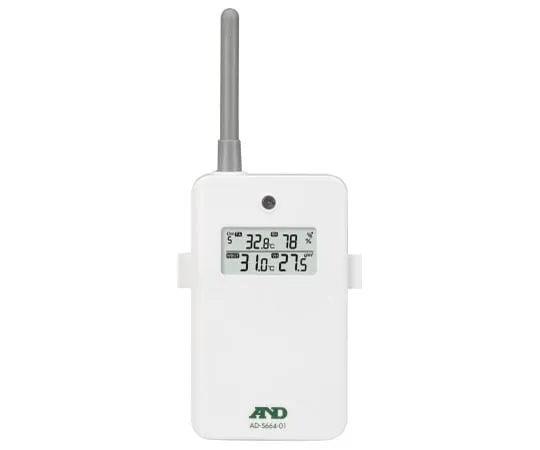

64-2544-10 External sensor unit for AD5664 AD-5664-01
Product Description
Product Model: 64-2544-10Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 64-2544-10
Product Brand: A&D
Features
- [Application]
- For agricultural ho***s. For measuring temperature and humidity and soil temperature (soil temperature) in ho***s for raising rice seedlings, etc., in wareho***s for vegetables, fruits and alcohol. For temperature and humidity control of vegetables, fruits and other crops, sake breweries and wine fermentation and brewing, and for temperature and humidity control of factories, offices, gymnasiums, facilities and ho***s, as well as the risk of heat stroke and influenza epidemics.
- 【 Features 】
- Remote temperature and humidity, heat stroke index (WBGT) and absolute humidity (VH) are displayed wirelessly.
- Can be ***d to understand the risk of heatstroke and seasonal influenza epidemics.
- Up to 5 slave units can be connected to one master unit.
- The maximum communication distance is 100 meters (Visual distance, height 1.2 m).
- Built-in sensors that measure environmental temperature and humidity.
- Temperature probes (sold separately) can be connected, and up to two can be connected to one slave unit.
- Soil temperature and liquid temperature can be measured (the cable length of the temperature probe is about 2.5 m).
- The unit also has a LCD display, so you can check the measured values at the measurement site.
- Specified low-power equipment with a radio frequency of 429.2 MHz.
Spec
- Product Size (mm): Length 66 x Width 112
- Display items: Temperature [TA], Relative Humidity [RH], Heatstroke Index [WBGT], Absolute Humidity [VH], Temperature Probe [T1/T2] (When Temperature Probe is Connected, sold separately)
- Measurement Range: Temperature [TA] 0 ~ 50 °C, Relative Humidity [RH] 20 ~ 90% RH, Temperature Probe [T1/T2] (Sold Separately) -40 to 70 °C
- Measurement Accuracy: Temperature [TA] ± 1 °C (10 ~ 39.9 °C), ± 2 °C (0 ~ 9.9 °C, 40 ~ 50 °C), Relative Humidity [RH] ± 5% RH (30 ~ 69% RH) ± 10% RH (20 ~ 29% RH, 70 ~ 90% RH), Temperature Probe [T1/T2] (Sold Separately) ± 1 °C (10 ~ 39.9 °C), ± 2 °C (-10 to 9.9 °C, 40 ~ 49.9 °C), ± 3 °C (-40 to -10.1 °C, 50 ~ 70 °C)
- Display range: Temperature [TA] -20 ~ 70 °C, Relative Humidity [RH] 5 ~ 99% RH, Heatstroke Index [WBGT] 0 ~ 60 °C, Absolute Humidity [VH] 1 ~ 99.9 g/m3, Temperature Probe [T1/T2] (When temperature probe is connected, sold separately) -40 ~ 70 °C
- Minimum Display: Temperature [TA] 0.1 °C, Relative Humidity [RH] 1% RH, Heatstroke Index [WBGT] 0.1 °C, Absolute Humidity [VH] 0.1 g/m3, Temperature Probe [T1/T2] (When Temperature Probe Connected, Separately Sold) 0.1 °C
- Measurement interval: about 20 seconds
- Power supply: 2 AA alkaline batteries
- External Dimensions: 66 (W) x 112 (H) x 31 (D) mm * Excluding Antenna and Other Protrusions
- Mass: about 165 g (including batteries)
