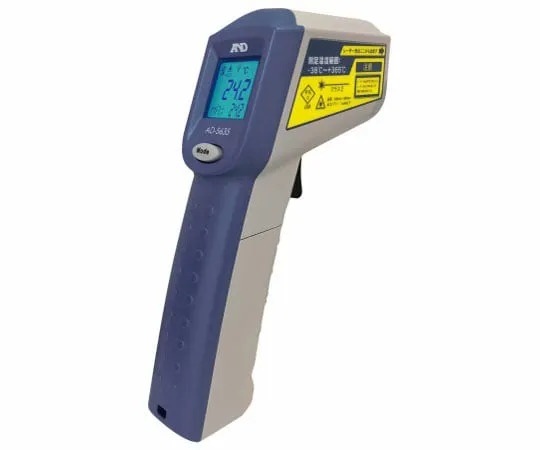

64-2544-08-56 Infrared Radiation Thermometer with Laser Marker with English Calibration Certificate AD-5635
Product Description
Product Model: 64-2544-08-56Product Brand: A&D Feat […]
Contact Us
Product Details
Product Model: 64-2544-08-56
Product Brand: A&D
Features
- Non-contact infrared radiation thermometer with laser marker for temperature measurement.
- Instantaneous measurement (response speed about 1 second) is possible.
- It is safe and hygienic beca*** it is non-contact.
- The LCD is backlit.
- PS/C mark certified product.
- For heat generation and temperature control of machinery, piping and air conditioning equipment.
- For temperature measurement and control of paint drying process.
- For temperature control of asphalt pavement and concrete curing.
- For plastic molding and temperature control of resin products.
- For heat generation and temperature control of walls, floors and ceilings of buildings.
- For controlling fermentation and aging temperature of foods such as sake, soy sauce, miso and bread.
- For temperature control of food (Meat and seafood) and during transport and storage.
Spec
- Product Size (mm): Length 162 x Width 40 x Height 0.17
- Product Weight (kg): 0.17
- Measurement range: -38 to + 365 °C
- Minimum display: 0.1 deg. C
- Response time: Approximately 1 second (90%)
- Response wavelength: 5 to 14 μm
- Emissivity setting: 0.95/0.70/0.30 (Initial factory 0.95)
- Measuring distance (D): measurement range (S) = 12: 1
- laser marker
- Class 2 (JIS C 6802)
- Laser wavelength: 635 to 660 nm
- Output power: Less than 1 mW (marker off is possible)
- battery: AAA size type battery 2 pieces
- battery Life: 14 hours or more (Alkaline battery, continuous ***)
- blister pack
- *A product with a calibration certificate is an original service of Azwan which calibrates measuring instruments at the time of shipment by AS ONE or a AS ONE partner company and issues calibration certificate.
- This product is a general calibration. calibration certificate (calibration certificate, test results report, traceability system chart) is attached.
- *It comes with both a set of 3 Japanese documents and a set of 3 English translations.
- The calibration points are 3 points: low, medium and high temperature. If you would like other points, please contact us separately.
