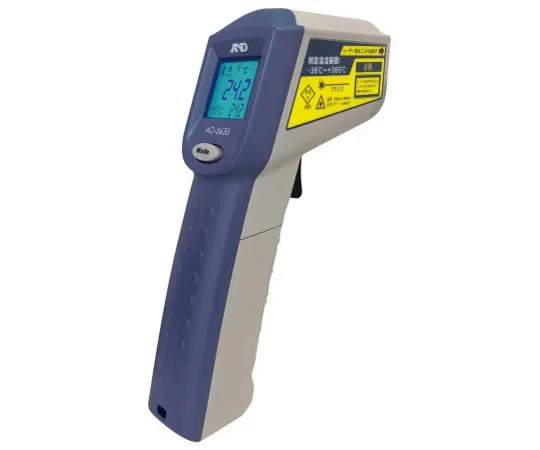

64-2544-08 Infrared Radiation Thermometer with laser marker AD-5635
toner

64-2544-08 Infrared Radiation Thermometer with laser marker AD-5635

model: 64-2544-08
brand: A&D
category: toner

Product Description

Product Model: 64-2544-08Product Brand: A&D Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 64-2544-08
Product Brand: A&D

Features

  • [Applications]
  • Heat generation and temperature control of machinery, piping equipment, and air conditioning equipment; temperature measurement and control of paint drying process; temperature control of asphalt pavement and concrete curing; temperature control of plastic molding and resin products; heat generation and temperature control of walls, floors, and ceilings of buildings; temperature control of fermentation and aging temperature of foods such as alcohol, soy sauce, miso, and bread; temperature control of foods (Meat and seafood) and temperature control during transportation and storage
  • [Features]
  • PS/C mark (JQA) certified products
  • Maximum temperature during measurement displayed at the same time
  • Backlight with laser marker
  • Auto power off function (auto off in about 15 seconds)
  • Measurement range is -38 to +365°C (AD5635/AD5619)
  • Measurement range is -60 to +500°C (AD5611 A/AD5614)

Spec

  • Product Size (mm): Length 162 x Width 40 x Height 0.17
  • Product Weight (kg): 0.17
  • Measurement range: -38 to + 365 °C
  • Minimum display: 0.1 deg. C
  • Response time: Approximately 1 second (90%)
  • Response wavelength: 5 to 14 μm
  • Emissivity setting: 0.95/0.70/0.30 (Initial factory 0.95)
  • Measuring distance (D): measurement range (S) = 12: 1
  • laser marker
  • Class 2 (JIS C 6802)
  • Laser wavelength: 635 to 660 nm
  • Output power: Less than 1 mW (marker off is possible)
  • battery: AAA size type battery 2 pieces
  • battery Life: 14 hours or more (Alkaline battery, continuous ***)
  • blister pack
