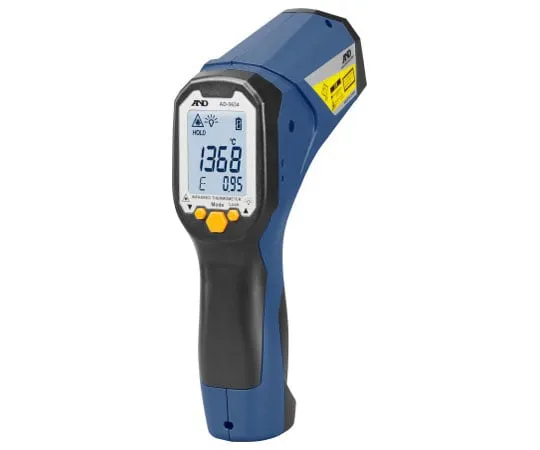

64-2544-07 Infrared Radiation Thermometer with Data Logger type laser marker AD-5634
Product Description
Product Model: 64-2544-07Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 64-2544-07
Product Brand: A&D
Features
- [Application]
- Temperature control for piping and other equipment and work sites, temperature control for asphalt and concrete, drying temperature control for painting processes, temperature control for stored objects and materials, temperature control for chemicals and food
- [Features]
- Micro SDHC card (included) records measurement data (saves in CSV file format) and can store approximately 31.4 million data (per 1GB of card memory capacity).
- The measurement value of the infrared radiation thermometer and the measurement value of the K-type thermocouple temperature sensor can be simultaneously measured and stored.
- Up to 24 measurement data can be recorded in the internal memory (infrared radiation thermometer).
- Precision D: S ratio =60:1 (maximum).
- It comes with a two-point laser marker that shows the approximate measurement position.
- The display has a backlight function and is easy to see in low light.
- The laser standard is Class 2 (JIS C 6802), with a laser wavelength of 635~660 nm and an output power of less than 1 mW.
Spec
- Product Size (mm): Length 58 x Width 203
- measurement item/Items displayed: Temperature due to radiant infrared sensor, temperature due to K class thermocouple sensor
- radiation thermometer
- measurement range: -35.0 to + 1500 °C (Display Range: -35.0 to + 1600 °C)
- Minimum display: 0.1 deg. C (-35.0 to 999.9 deg. C), 1 deg. C (other display range)
- K class thermocouple thermometer
- Display Range: -64.0 to 1400 °C (measurement range ***s measurement range for K class thermocouple Temperature Sensor)
- Minimum display: 0.1 deg. C (-35.0 to 999.9 deg. C), 1 deg. C (other display range)
- Storage memory for Micro SDHC card capacity: 4 GB to 32 GB (* with Micro SDHC card)
- Saving data to a Micro SDHC card File format: CSV format
- Power Supply: AA size type battery 2 pieces
- battery service life: about 70 hours (Alkali battery, R.T. 25 °C Continuous *** without laser marker or backlight)
