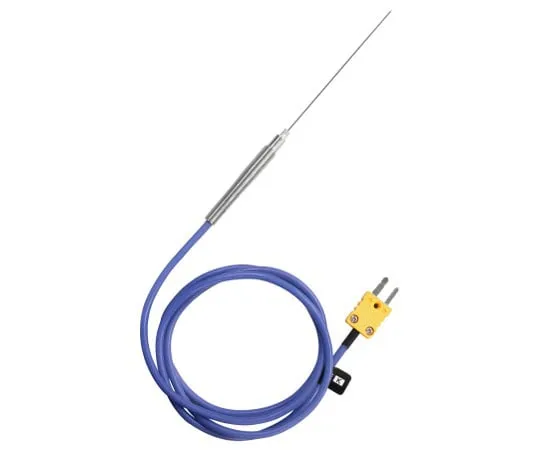

64-2544-02 K Type (Chromel/Almel) Thermocouple Sensor (Needle Sheath Type) AD-1220-100
Product Description
Product Model: 64-2544-02Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 64-2544-02
Product Brand: A&D
Features
- [Application]
- Various shapes are available for checking the temperature of equipment, checking the temperature of cooking utensils, and measuring the surface temperature.
- 【 Features 】
- Used by connecting to K-type thermocouple thermometer
- Suitable for small thermocouple connector (SMP type) of Omega, U.S.A. (center spacing of flat electrode 7.9 mm)
- Available in various shapes dep***ing on the application
Spec
- Product Size (mm): Length 8 x Width 162 x Height 0.036
- Product Weight (kg): 0.036
- Temperature measuring range: 0 to 200 °C
- Thermocouple: K type (chromel/almel)
- Accuracy: ± 2.5 °C
- Metal Sheath Dimensions: φ 1.07 mm x 100 mm
- Metal Sheath material: SUS304
- Cable Length: Approx. 1 m
- cable material: silicon
- Outer Dimensions: 8 (W) x 162 (H) x 8 (D) mm (Not Including Cable)
- Weight: approximately 36 g (including cables)
- Applicable Thermometers: AD -5601 A, AD -5602 A, AD -5605 H, AD -5614, AD -5616, AD -5618, AD -5634
