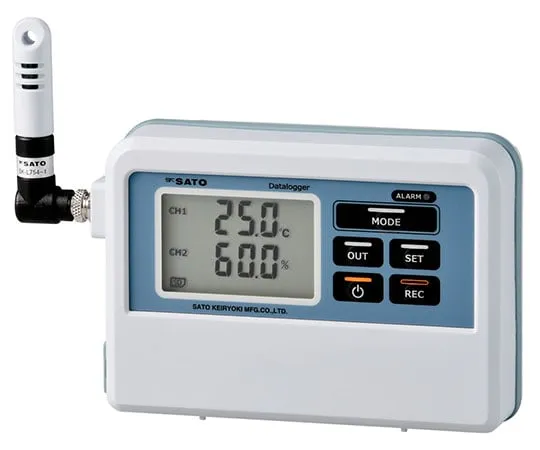

64-2193-51 A set of temperature/humidity data logger/integrated Sensor + traceability documents (4-piece set) SK-L754SK-L754-1
Product Description
Product Model: 64-2193-51Product Brand: Sato Keiryoki M […]
Contact Us
Product Details
Product Model: 64-2193-51
Product Brand: Sato Keiryoki Mfg. Co., Ltd.
Features
- This product is a data logger that can store up to 16,000 measurement data, and a set of tresablity documents (4-piece set of calibration transcript, calibration certificate, system chart, and reference instrument transcript) is attached to it. Calibration standard points are temperature/10,23,40°C, humidity/40,60,80% (at23°C)
- You can choose from 4 storage methods dep***ing on your usage (Specify the number of one-time ***less data, page)
- The stored measurement data can be copied to a microSD memory card (sold separately) in addition to being downloaded to a computer (can also be copied during storage)
- The key lock function prevents erroneous operations such as during storage
- The upper and lower limits of the alarm value can be set (LED is lit when the alarm is activated)
- You can *** either a battery or an AC adapter (sold separately)
- * The AC adapter takes precedence when ***d in combination. When the AC adapter stops supplying power due to a power failure, the battery switches automatically. • Even if the power is turned off, the stored measurement data is stored in the internal memory. • Analysis software comes with standard software. • Features of software. • • Up to 10 indicators can be connected simultaneously using a USB hub. • • Graph display, storage, printing, and analysis based on application (Scaling, analysis and storage of selection periods, integrated temperature analysis, etc.) are possible. • • Data can also be stored in CSV format. • • Real-time monitoring is possible. During real-time monitoring, alarm settings can be made, and alerts can be sent to pre-registered email addresses.
Spec
- Measurement Range: Temperature/-10.0 to 60.0 °C, Humidity/5.0 to 95.0% rh
- Resolution: Temperature/0.1 °C, Humidity/0.1% rh
- Accuracy of measurement: Temperature ± 0.7 °C (0 to 40 °C), ± 0.8 °C (except the left), Humidity/± 3.2% rh (at 20 to 30 °C and 5 to 90% rh), ± 5.3% rh (at 10 to 20 °C, 30 to 50 °C and 5 to 95% rh), Others ± 6.3% rh
- Display Function: Temperature/Humidity Warning (ALM), Storage Method, Status Display (REC/RES), Storage Amount (Bar), SD Memory, Low Battery Mark, Key Lock Mark, Error Message, Setting Value Display at Each Setting
- Number of storage channels: Temperature 1 channel, Humidity 1 channel
- Storage capacity: Each channel (temperature/humidity) 16000 data
- Memory interval: 1 sec., 2 sec., 5 sec., 10 sec., 15 sec., 30 sec., 1 min., 2 min., 5 min., 10 min., 15 min., 30 min., 60 min., 14/90 Street
- External memory: microSD, SDHC/up to 32 GB. *Use a preformatted memory. The format supported by this tester is FAT 32 format. NTFS format not available
- environment ***d conditions: -10 to 60 °C 85% rh or less (non-condensing)
- Power Supply — AA size alkaline battery 2 pieces or a dedicated AC adapter (optional)
- battery Life: Measurement Mode/Approx. 500 Hours, Storage Mode/Each interval Can Store 16,000 Data (LCD Off) * AC Adapter is Recomm***ed for LCD Continuous Display and Measurement Mode
- Dimensions : Body/Approximately ( W ) 114 x ( H ) 80 x ( D ) 35 mm ( Excluding Protrusion ) Sensor/Approximately φ 11 x ( H ) 60 mm , Connector/Approximately φ 9 x L 30 mm
- Weight: main body/about 227 g (including battery), sensor/about 9 g
- Accessories: AA size Type alkaline battery 2 pieces, Communication Cable (1.5 m) 1 piece, 1 Owner's Manual, 1 Quick Manual, Analysis Software CD-ROM 1 piece, Sensor Filter 1 piece, test result report
- Compatible OS: Windows 10/8. 1/8 (64 bit/32 bit Japanese version) * The latest service pack must be installed.
- Other
- Memory 4 GB or more (32 bit), 8 GB or more (64 bit)
- Hard drives require a minimum of 4 GB free capacity
- Have a USB port and CD-ROM drive.
- *When you *** the email alert function, you need an internet connection and an email address.
- Optional: No. 8229 -50 dedicated AC adapter (cable 1.5 m)
