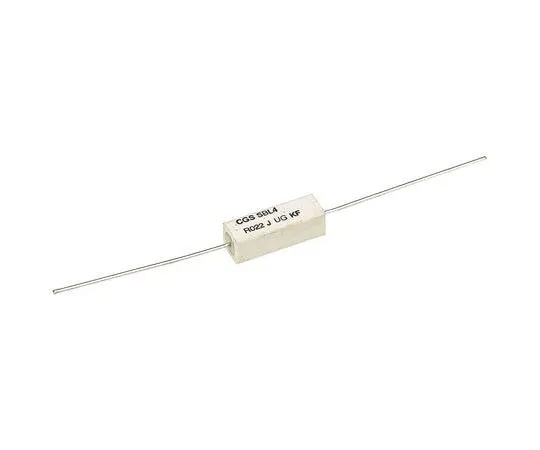

63-4680-19 TE Connectivity 22mΩ 4W Through Hole Fixed Resistor ±5% ±950ppm/°C SBL4R022J
model:
63-4680-19
brand:
TE Connectivity
Product Description
Product Model: 63-4680-19Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4680-19
Product Brand: TE Connectivity
Features
- SBL Series, Axial. TE Connectivity SBL series through hole resistors are a low Ohmic non-inductive resistor with a low temperature coefficient in a fully insulated ceramic housing. These through hole fixed resistors are ideal for applications in power supply regulation. The solid metal element has welded copper terminals and is encapsulated in a ceramic housing filled with silica sand. Features. Solid metal element 4 Watt & 5 Watt Version Low temperature coefficient Non-inductive. Applications. Power supply regulation Motor control current monitoring Overload sensors and radio frequency Feedback control loops
Spec
- Quantity：1bag(5pieces)
- Resistance : 22mΩ
- Power Rating : 4W
- Tolerance : ±5%
- Technology : Metal Film
- Series : SBL
- Minimum Operating Temperature : -55°C
- CODE No.:125-1127
