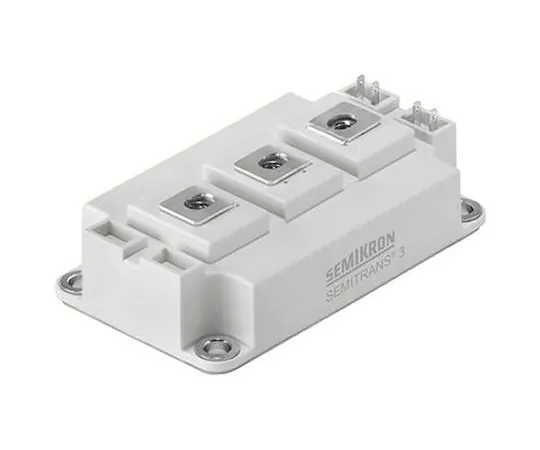

63-4680-13 Semikron SKM400GB125D, SEMITRANS3 , N-Channel Dual IGBT Transistor Module, 400 A max, 1200 V, Screw Mount SKM400GB125D
Product Description
Product Model: 63-4680-13Product Brand: Semikron Featur […]
Contact Us
Product Details
Product Model: 63-4680-13
Product Brand: Semikron
Features
- Dual IGBT Modules. A range of SEMITOP® IGBT modules from Semikron incorporating two series-connected (half bridge) IGBT devices. The modules are available in a wide range of voltage and current ratings and are suitable for a variety of power switching applications such as AC inverter motor drives and Uninterruptible Power Supplies. Compact SEMITOP® package Suitable for switching frequencies up to 12kHz Insulated copper baseplate using Direct Bonded Copper technology
Spec
- Quantity：1piece
- Transistor Configuration : Half Bridge
- Maximum Continuous Collector Current : 400 A
- Maximum Collector Emitter Voltage : 1200 V
- Maximum Gate Emitter Voltage : 20V
- Channel Type : N
- Mounting Type : Screw Mount
- Package Type : SEMITRANS3
- Pin Count : 7
- Switching Speed : 12kHz
- Dimensions : 106.4 x 61.4 x 30.5mm
- Height : 30.5mm
- Length : 106.4mm
- Maximum Operating Temperature : +150 °C
- Width : 61.4mm
- CODE No.:125-1115
