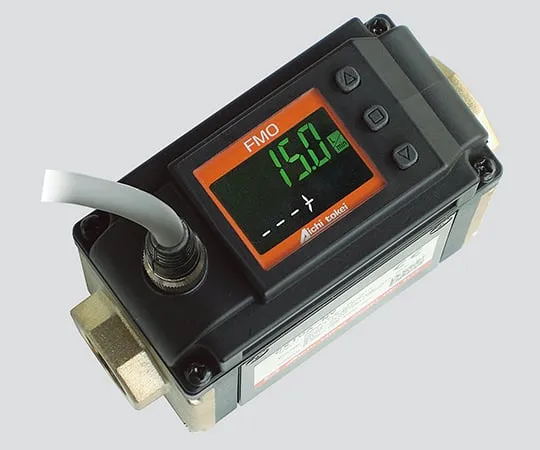

3-5262-01 Electrostatic Capacitive Electromagnetic Flow Monitor CX10A-NA-3
Product Description
Product Model: 3-5262-01Product Brand: Aichi Tokei Denk […]
Contact Us
Product Details
Product Model: 3-5262-01
Product Brand: Aichi Tokei Denki Co., Ltd.
Features
- Superior in durability beca*** flow path is made of plastic mixed with inductor to allow the electrodes not to come into contact with liquid and there is no movable part.
- Criteria for abnormal flow rate levels are preset. The indicator LED color automatically changes between green（normal）and red（abnormal）.
Spec
- Model number: CX10A-NA-3
- Size (mm): 90 x 40 x 86.8
- Weight (g): Approximately 460
- Target fluid: Water, water soluble coolant liquid
- Flow rate: 0.0 - 15L/min
- Accuracy: +/- 2%FS
- Accuracy guaranteed range: 0.5 - 15L/min
- Pressure resistance: 2MPa
- Used pressure: 1MPa
- Power supply: 24VDC +/- 10%
- Connection shape: Rc3/8
- Accessories: Body connector connection cable 3m
