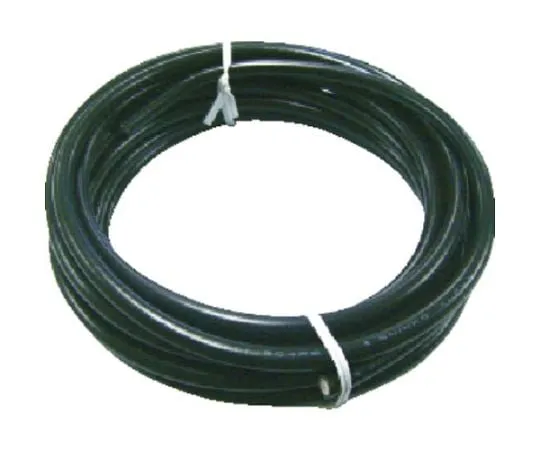

Spec

• Total length (m): 5.0
• Insulation resistance: 1000MΩ・km or more
• Conductor resistance: 21.1Ω/km or less
• Withstand voltage (1 minute): AC1000V
• Capacitance (1kHz): 67
• Maximum attenuation (dB/km, 20℃): 90MHz = 67.6, 220MHz = 109, 470MHz = 167, 770MHz = 221, 1300MHz = 300, 1550MHz = 335, 1770MHz = 362, 2000MHz = 391, 2150MHz = 408
• Mass (kg): 0.35
• Internal conductor outer diameter: 1.05mm
• Insulator thickness: 1.98mm
• Insulator outer diameter: 5.0mm
• Aluminum laminate tape thickness: 0.05mm
• Aluminum laminate outer diameter: 5.1mm
• External conductor tin plating annealed copper wire braid: Element wire diameter = 0.14mm, position number x stroke = 4 x 24 or 6 x 16, pitch = 42mm or less
• Sheath thickness: 0.95mm
• Sheath finishing outer diameter: Approx 7.7mm
• Insulation material: Foamed polyethylene
• External conductor 1: Double-sided aluminum laminate tape
• External conductor 2: Tin plating annealed copper wire braid
• Sheath material: PVC
• Application: for wiring in the terrestrial broadcasting, satellite broadcasting, signal transmission among BS/CS broadcasting devices and internal.
• Production country: Japan
• Weight: 0.35kg
• Manufacturer's model number: FB5
• Code number: 375-3352
