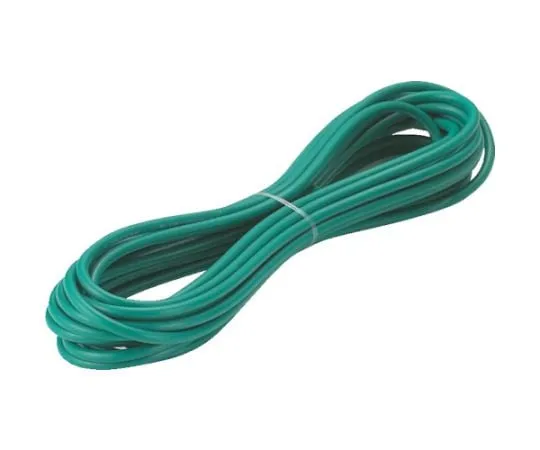

61-2229-47 Earth Cord VSF Cord 5m SF-5CS
Product Description
Product Model: 61-2229-47Product Brand: Seiwa Denko Co. […]
Contact Us
Product Details
Product Model: 61-2229-47
Product Brand: Seiwa Denko Co., Ltd.
Features
- This is an electric wire ***d for small electrical appliances with an AC of 300 V or less, which are mainly ***d indoors. The conductor of the strand is vinyl insulated. (Single Core Vinyl Cord)
- As a ground wire or a lead wire in an electrical appliance.
Spec
- Color: Green
- Number of cores: 1
- Total length (m): 5
- Ratings: 125V-15A
- Mass (kg): 0.15
- JIS C3306 standard product
- Conductor (strand wire) cross-sectional area: 2.0mm^2 number of element wire (piece)/element wire diameter: 37/0.26mm outer diameter: 1.8mm
- Insulator thickness: 0.8mm
- Outer dimensions: 3.4mm
- VSF (single core) vinyl cord
- Application: It is ***d as earthed wire and lead wire inside electric equipment.
- Production country: Japan
- Weight: 0.15kg
- Manufacturer's model number: SF5CS
- Code number: 251-9968
