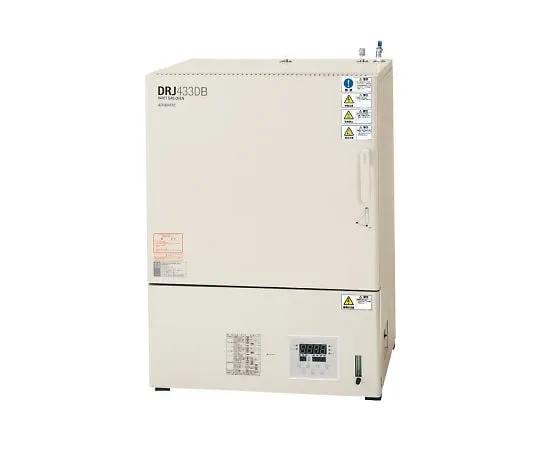

Spec

• convection formula : Blower type (Right Callout, Horizontal)
• Operating temperature range (°C): R.T. + 50 °C to 370 °C
• Temperature adjustment precision (°C): ± 0.3 °C at 350 °C
• Temperature distribution accuracy (°C): ± 4 °C at 350 °C
• Temperature rise time: about 60 minutes, from R.T. to 370 °C
• Ambient operating temperature: 5 °C, to 35 °C
• temperature controller: Microcomputer PID Control (TC-SVI System)
• Operation type: Standard Operation, Program Operation (maximum 100 steps) 1 minute, to 99 hours 59 minutes
• Temperature sensor: K class thermocouple
• Heater: Stainless Steel Sheath Heater
• Heater capacity (kW): 3
• Blower Fan: Sirocco Fan (Stainless Steel)
• N2 Gas flow rate Total: maximum flow rate 30 L/min
• Interior: SUS304
• Door Packing: Silicone Rubber
• Safety device: Self-diagnostic function (Overheating, temperature sensor error, heater disconnection, SSR short circuit, ambient temperature error), indep***ent overheat prevention device, blower overload prevention device, blower reverse rotation prevention device, control circuit protection f***, key lock function, overcurrent/earth leakage breaker
• inner dimension ( mm ) : W 450 x D 450 x H 450
• external dimensions ( mm ) : W 790 x D 765 x H 1,145
• Internal volume (approx. L): 91
• number of shelves/pitch: 7 stages/50 mm (Fixed Shelf Support)
• Exhaust Port: φ 65 mm
• Measurement port: Rc 1/4
• power supply (50Hz/60Hz): 200 VAC 3-phase 9.5 A
• Required power supply Equipment: 200 VAC, 3 Phase, 15 A
• Mass (approx. kg): 130
• Accessories: shelf board 2 pieces, Shelf Bracket 4 pieces, Fixed metal bracket 4 pieces (Mounting Screw 8 pieces)
