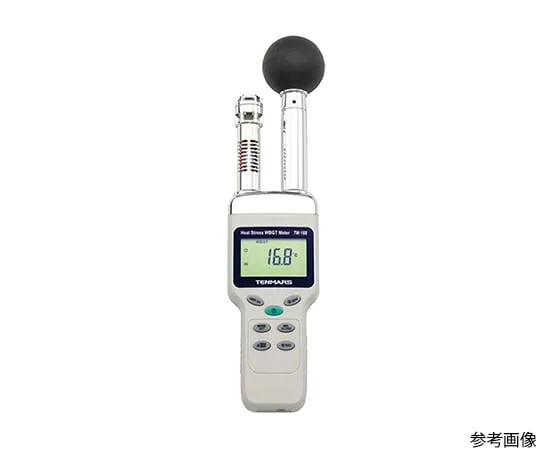

64-0829-98 Heatstroke Index Monitor (with dedicated USB cable) TA423D
Product Description
Product Model: 64-0829-98Product Brand: ICHINEN TASCO C […]
Contact Us
Product Details
Product Model: 64-0829-98
Product Brand: ICHINEN TASCO CO., LTD.
Features
- For heat stroke prevention measures/safety management of working environment, etc.
- Alarm settings for heat stroke index WBGT value can be set
- One unit can measure heat stroke index (IN/OUT), black bulb temperature, air temperature, relative humidity, wet bulb temperature, and dew point
- Indoor/outdoor mode can be selected according to the environment
- Tripod convenient for measuring
- MAX/MIN value display with data hold function
- Auto power off function
- Backlit
- TA423D can manage PC data via USB connection
Spec
- WBGT (IN)
- measurement range: 0 to 59.0 °C
- resolution: 0.1 °C
- Precision: ± 1.0 °C
- WBGT (OUT)
- measurement range: 0 to 56.0 °C
- resolution: 0.1 °C
- Precision: ± 1.5 °C
- air temperature
- measurement range: 0 to 50.0 °C
- resolution: 0.1 °C
- Precision: ± 0.8 °C
- blackbulb temperature
- measurement range: 0 to 80.0 °C
- resolution: 0.1 °C
- Precision: ± 0.6 °C
- blackbulb temperature
- measurement range: 0 to 80.0 °C
- resolution: 0.1 °C
- Precision: ± 0.6 °C
- dew point
- measurement range: -35.3 to 48.9 °C
- resolution: 0.1 °C
- relative humidity
- measurement range: 1 for to 99 for %RH
- resolution: 0.1 for %RH
- Accuracy: ± 3.0 %RH (20 to 80 %RH) Other: ± 5.0 %RH
- Sampling: approximately 1 second/time
- environment ***d: 0 to 50 °C 95 %RH or Less (non-condensing)
- Storage Environment: -10 to 50 °C 70 %RH or Less (non-condensing)
- power supply: 1 x 006P (9 V) or 9 VDC adapter
- battery Life: Approximately 200 hours of continuous ***
- Dimensions: 70 (W) x 300 (H) x 50 (D) mm
- Weight: about 270 g
- Black Ball Size: φ 50 mm
