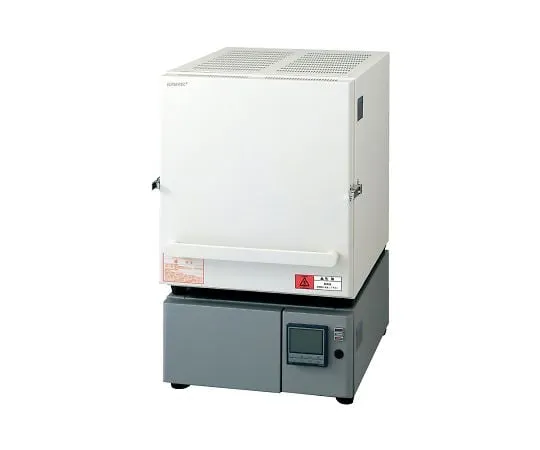

Spec

• Operating temperature range (°C): 400 to 1,500 Maximum normal temperature 1,400
• Temperature Adjustment Accuracy (°C): ± 2 at 1,400
• Temperature distribution precision (°C): ± 5 at 1,200 to 1,400
• Temperature rise time: about 15 minutes, from R.T. to 1,400 °C
• Ambient operating temperature: 5 °C, to 35 °C
• temperature controller: Microcomputer PID Control
• Operation form : Program Operation (10 patterns 10 steps, pattern linking possible)
• Temperature sensor: R class thermocouple
• Heater: Silicon Carbide
• Heater capacity: 7.6 kW (10 pieces)
• Temperature recorder: recording width 100 mm 1 pen type chart speed 10 mm/h to 12,000 mm/h (40 stage switching)
• Furnace: Alumina Fiber 1600
• Safety device: Self-diagnostic function (Overheating, temperature sensor disconnection, heater disconnection, SCR error), overcurrent/earth leakage breaker
• Furnace inner size [Effective Dimensions] (mm): W 200 x D 250 x H 200 [H 175]
• Furnace external dimensions: W 500 mm x D 660 mm x H 585 mm
• Control Panel external dimensions: W 500 mm x D 640 mm x H 245 mm
• Furnace internal volume (approx. L): 10
• power supply (50Hz/60Hz): 200 VAC Single-phase 45 A
• Required power supply Equipment: 200 VAC Single-Phase 50 A
• Mass (approx. kg): 95
• Accessories: Hearth Plate 1 piece
