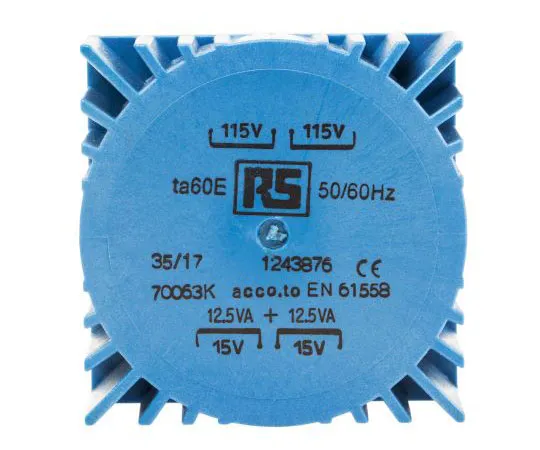

63-4675-24 RS PRO 2 x 115V, 2 x 15V Toroidal Transformer, 25VA 124-3876
Product Description
Product Model: 63-4675-24Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4675-24
Product Brand: RS PRO
Features
- RS Pro Toroidal PC Transformer 1.6 VA→25 VA
- The RS Pro Toroidal PC transformer is a compact and lightweight transformer with high efficiency and low profile. These toroidal transformers feature low iron loss and low induction noise. Dual 115 V primary windings that can be connected in parallel or in series.
- Features • Low stray magnetic field Reduction of standby current Test voltage 1st order -2 order 4.0 KV Easy to mount - M4 Center bush ambient operating temperature: +60°C maximum Fully compliant with RoHS and REACH
Spec
- Primary Voltage Rating:2 x 115V
- Secondary Voltage Rating:2 x 15V
- Power Rating:25VA
- Secondary Current:832mA
- Height:37.5mm
- Weight:435g
- Dimensions:60 x 60 x 37.5mm
- Maximum Operating Frequency:50Hz
- Mounting Type:Through Hole
- Isolation Voltage:4kV
- CODE No.:124-3876
