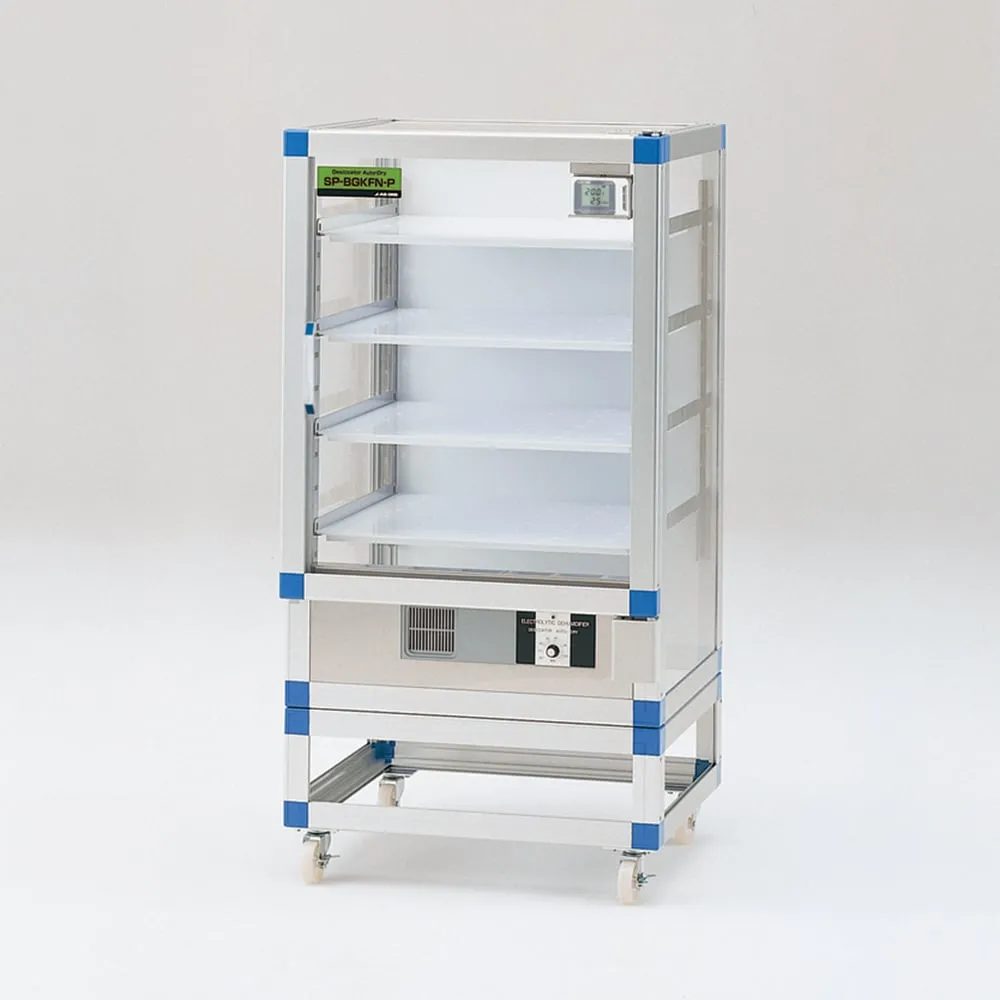

1-5504-43-20 Auto Dry Desiccator BG/FN 574 x 524 x 1135 mm Reinforced Plastic Shelf Board with Calibration Certificate SP-BGKFN-P
Product Description
Product Model: 1-5504-43-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-5504-43-20
Product Brand: AS ONE Corporation
Features
- The dead space in the desiccator is eliminated, and the inside of the cabinet can be ***d effectively.
- By adopting a new type of door opening/closing mechanism and eliminating dead space when opening/closing the door, it can be installed without clearance on the wall surface.
- The new dehumidification unit has no driving part and no source of sound or vibration, so it has excellent durability.
- Moisture inside the desiccator is released directly to the outside in a gaseous state, so water droplets (drains) do not appear.
- Comes with casters for easy movement.
- The humidity control is controlled (analog setting) on the front panel.
- Standard series of lightweight aluminum frame and resin clear panel.
- A new type of solid polymer electrolyte membrane (Rosal) is installed on the front panel to directly electrolyse and continuously remove moisture from the interior air, enabling stable dehumidification.
- Attached is the calibration certificate (Certificate of calibration, inspection report, traceability system chart) of the digital temperature and humidity monitor (THA-01M) supplied with the desiccator, which was calibrated at 25°C and 50% humidity at the time of shipment.
Spec
- Auto Dry Type
- Dehumidification method: Electrolytic discharge of H2O by solid polymer electrolyte membrane
- Humidity setting range: 20 ~ 50% RH (dep***s on operating environment)
- Humidity Control Range: 20% RH to Indoor Humidity (at no load inside, dep***ing on operating environment)
- Humidity control system: Automatic dial adjustment (relative humidity)
- Dehumidifying element effective film area: approximately 25 cm2
- Material (Body/Frame): PMMA (Acrylic)/Aluminum
- Casters (2 front wheel stoppers): Made of 65 mm (nylon)
- Shelf Board Specifications: Reinforced Plastic
- Shelf dimensions/mounting pitch: 490 x 460 mm/50 mm
- Shelf board spacing: 35 mm
- Shelf Board Load Capacity: Approx. 10 kg/sheet
- Door packing: magnetic
- Power supply: 100 VAC 50/60 Hz
- Average power consumption: 4W
- Maximum power consumption: 27 W
- Power cord length: approx. 2.5 m (3 P plug)
- Body weight: 21 kg
- Accessories: 4 shelves, calibrated digital temperature and humidity monitor (THA-01M)
- External dimensions (mm): 574 x 524 x 1135
- Internal dimensions (mm): 560 x 483 x 864
- Reinforced plastic shelf with casters
- The calibration point is 25 degrees C, 50%. If you would like additional points, please contact us separately.
*This product might require extra fees.
