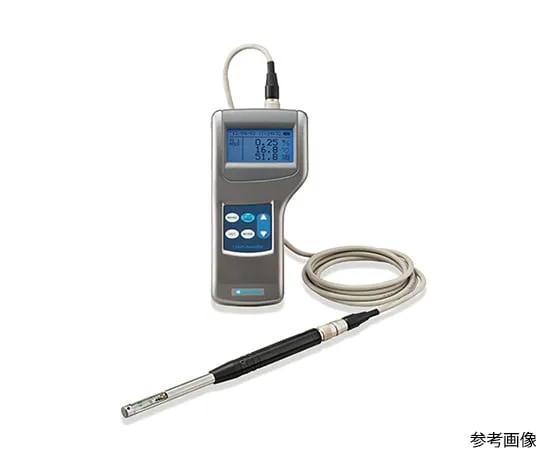

64-0827-36 Crimomaster TA411MA
Product Description
Product Model: 64-0827-36Product Brand: ICHINEN TASCO C […]
Contact Us
Product Details
Product Model: 64-0827-36
Product Brand: ICHINEN TASCO CO., LTD.
Features
- Ideal for maintenance and inspection of air conditioning equipment.
- It supports various measurements such as air environment measurement in clean booths and clean rooms, air volume measurement inside ducts, etc.
- A single probe can simultaneously and accurately measure wind speed, air temperature, humidity, and air volume. *The humidity measurement is TA411MA only.
- Up to 20,000 measurement data can be memorized.
- * Please inquire about the option sensor separately.
Spec
- measurement item: wind speed, temperature, humidity
- Measured for: clean air flow
- measurement range
- Wind velocity: 0.010 to 30.0 m/s
- Air Temperature: -20.0 to + 70.0 °C
- Humidity: 2.0 to 98 %RH
- measurement accuracy
- Wind velocity: 2% of ± reading or 0.015, whichever is larger in m/s
- Air Temperature: ± 0.5 °C
- Humidity *
- 2 to 80 %RH: ± 2.0 %RH
- 80 to 98 %RH: ± 3.0 %RH
- View resolution
- Wind velocity: 0 to 9.99 m/s: 0.01 m/s, 10 to 30 m/s: 0.1 m/s
- Air temperature: 0.1 °C
- Humidity: 0.1 %RH
- measurement accuracy
- Wind velocity: about 1 second
- Wind temperature: Approximately 30 seconds (90% response at Wind Speed 1 m/s)
- Humidity: about 15 seconds
- System Requirements: -20.0 to + 70.0 °C Non-condensing
- main unit size: 88 x 188 x 51 mm
