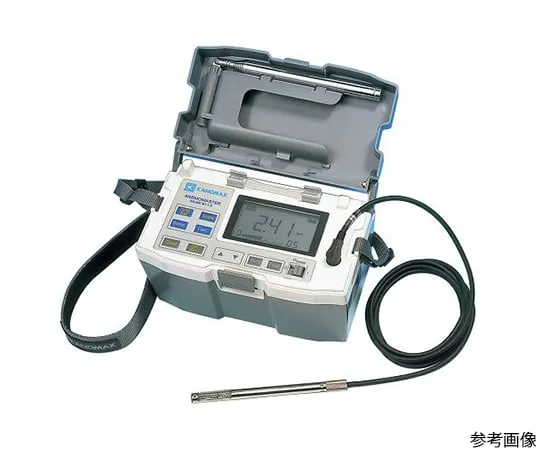

64-0827-34 Anemomaster TA411JC
Product Description
Product Model: 64-0827-34Product Brand: ICHINEN TASCO C […]
Contact Us
Product Details
Product Model: 64-0827-34
Product Brand: ICHINEN TASCO CO., LTD.
Features
- Wind speed, air temperature and pressure can be measured by one machine. *The pressure measurement is TA411JD only.
- Ideal for regular air conditioner inspection and measurement of wind speed inside the air conditioner.
- Sturdy body considering measurement in piping duct. Lid included.
- Uses a large LCD display. It's easier to see and simpler.
- With a shoulder belt, you can freely *** both hands to measure.
- 100 measurement data can be stored in the instrument.
Spec
- measurement item: wind speed, wind temperature
- Measured for: clean air flow
- wind speed
- measurement range: 0.10 to 50.0 m/s
- Viewing resolution: 0.00 to 9.99 m/s: 0.01 m/s, 10.0 to 50.0 m/s: 0.1 m/s
- Measurement accuracy: ± (3% + 0.1 of indicated value), m/s
- Responsiveness: About 1 second (Wind velocity 1 m/s, 90% response time)
- Temperature compensation accuracy: + 5 to + 80 °C, ± (5% + 0.1 of reading), m/s
- air temperature
- measurement range: 0.0 to + 100.0 °C
- Display resolution: 0.1 degrees C
- Measurement accuracy: ± 1.0 °C
- Responsiveness: Approximately 30 seconds (Wind velocity 1 m/s, 90% response time)
- Pressure
- measurement range: -5.00 to + 5.00 kPa
- Display resolution: 0.01 kPa
- Measurement accuracy: ± (3% + 0.01 of indicated value), kPa
- Responsiveness: about 1 second
- main unit size: 210 x 120 x 133 mm
