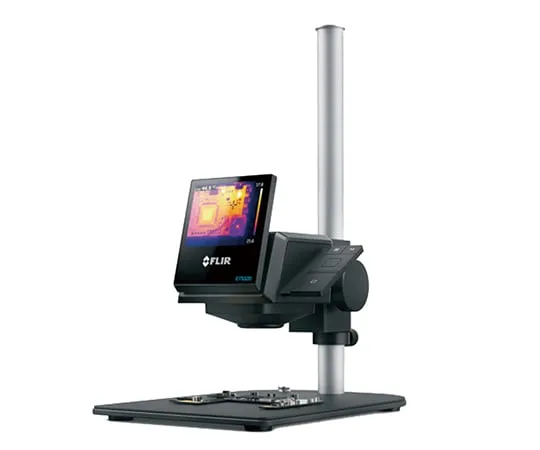

64-0826-82 Thermography for Electronics Test TA410ETS-320
Product Description
Product Model: 64-0826-82Product Brand: ICHINEN TASCO C […]
Contact Us
Product Details
Product Model: 64-0826-82
Product Brand: ICHINEN TASCO CO., LTD.
Features
- Reduces testing time Best for improving product design
Spec
- General Features
- Thermal Image Resolution: 320 x 240
- Detector: Uncooled microbolometer
- Spectrum wavelength: 7.5 to 13.0 μm
- Temperature resolution (NETD) at 30 °C: < 0.06 °C
- Viewing angle (FOV): 45 ° x 34 °
- resolution: 170 for μm
- Fixed focal length: 70 mm ± 10 mm
- Image Frequency: 9 Hz
- measurement and analysis
- Measurement Temperature Range: 20 °C to 250 °C
- Precision: ± 3 °C or ± 3% (at ambient temperature of 10 °C and to 35 °C)
- Measure Tools (Spot, Box): Spot, Area Box (max/min)
- Emissivity modification: variable up to 0.1 to 1.0
- Still image saving (JPEG with temperature information): ○
- infrared video storage (with temperature information): saving to PC (FLIR Tools +) using USB
- data communication interface: USB Micro: data communication with PC
