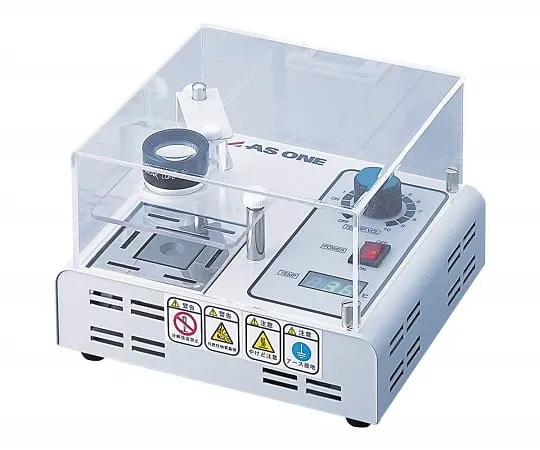

1-5804-01 Melting Temperature Measurement Device ATM-01
Product Description
Product Model: 1-5804-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-5804-01
Product Brand: AS ONE Corporation
Features
- The melting and softening points of compounds, resins, waxes, etc. can be easily measured.
- The temperature display is easy to see on the digital display.
- Equipped with excessive rise prevention function.
- Since the heat plate is coated with Teflon ®, it does not stain easily.
Spec
- Model number: ATM-01
- Size (mm): 190 x 170 x 122
- Hot plate: Aluminum block (teflon coating)
- Heater: Cartridge heater (120V x 60W x 1 piece)
- Measurement temperature range: Room temperature - 300℃
- Temperature display: Digital display (unit is 1℃)
- Temperature sensor: Pt resistance temperature detector
- Temperature adjustment: Thyristor Voltage control method
- Visual loupe: Steinheil loupe, at 5-fold magnification
- Casing: Steel plate baking coating
- Cover: PMMA (acrylic)
- Power supply: 100VAC 50/60Hz
- Body weight: 2.2kg
- Power cord: 1.5m (3P plug)
- *Cover glass is not attached.
