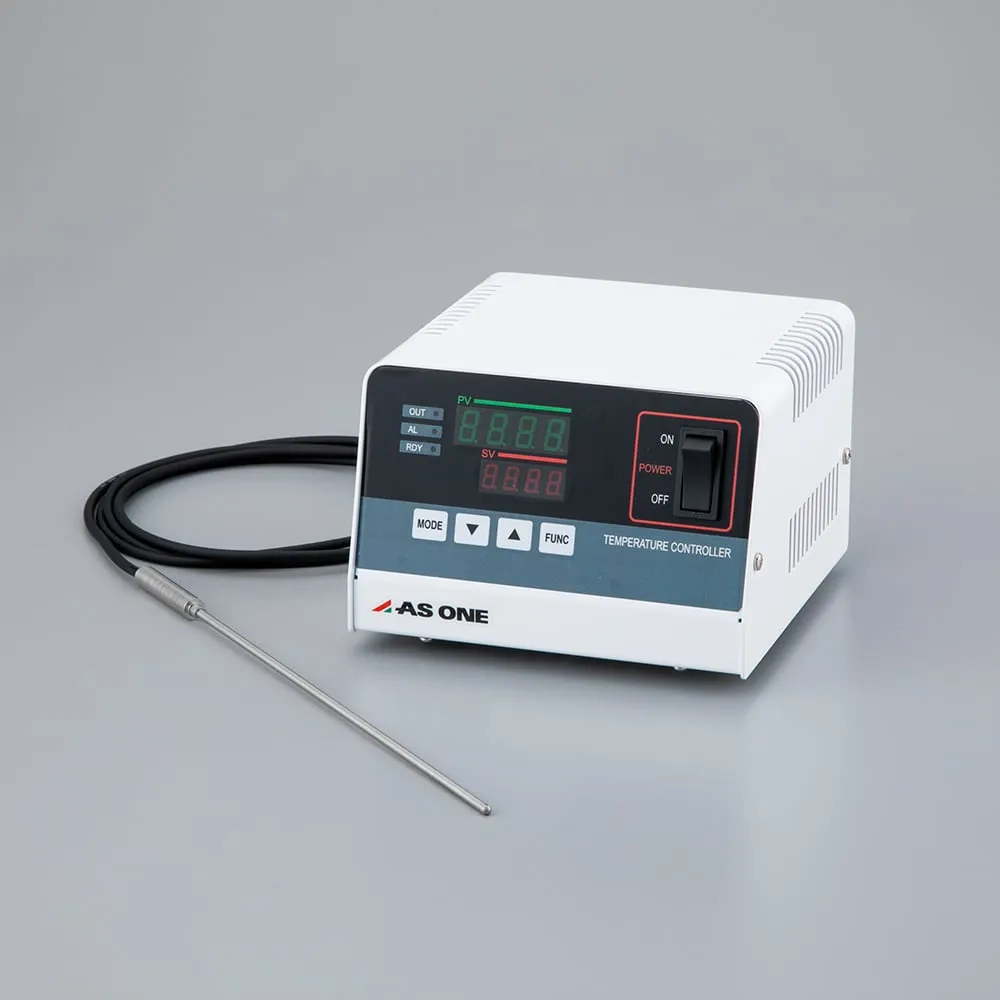

1-5719-21-20 Free Power Supply Digital Temperature Controller -19.9~+99.9°C Pt100Ω with Calibration Certificate TS-PG
Product Description
Product Model: 1-5719-21-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-5719-21-20
Product Brand: AS ONE Corporation
Features
- Uses SSR that matches PID auto tuning for more precise temperature control.
- The power supply can optionally be selected from 100~200 VAC.
Spec
- Range (°C): -19.9 - +99.9
- Minimum Display Unit (°C): 0.1
- Quantity: 1 Piece
- Sensor Sheath Material: SUS316
- Sensor Dimension: Φ3.2 x 200 mm
- Cable length: 2 m
- Safety Function: Excess Temperature Rise Prevention Relay
- Temperature control accuracy: ±0.3%FS±1digit
- Temperature Control: PID Control (Auto Tuning/SSR System)
- Attached Sensor: Pt100Ω
- External Dimensions: 135 x 145 x 95 mm
- Power: 100~200 VAC 50/60Hz 15 A
- Connection Capacity: Resistive Load MAX15A
- Terminal Size: M4
- Accessories: Electric wire with 3P plug for 100 V, electric wire + ground wire for 200 V, temperature sensor, ground wire * Outlet plug is not provided for single-phase 200 V.
- *The measurement range is 0~750°C when the supplied K thermocouple sensor is ***d.
- *Install so that the temperature of the sleeve part is 100°C or less.
