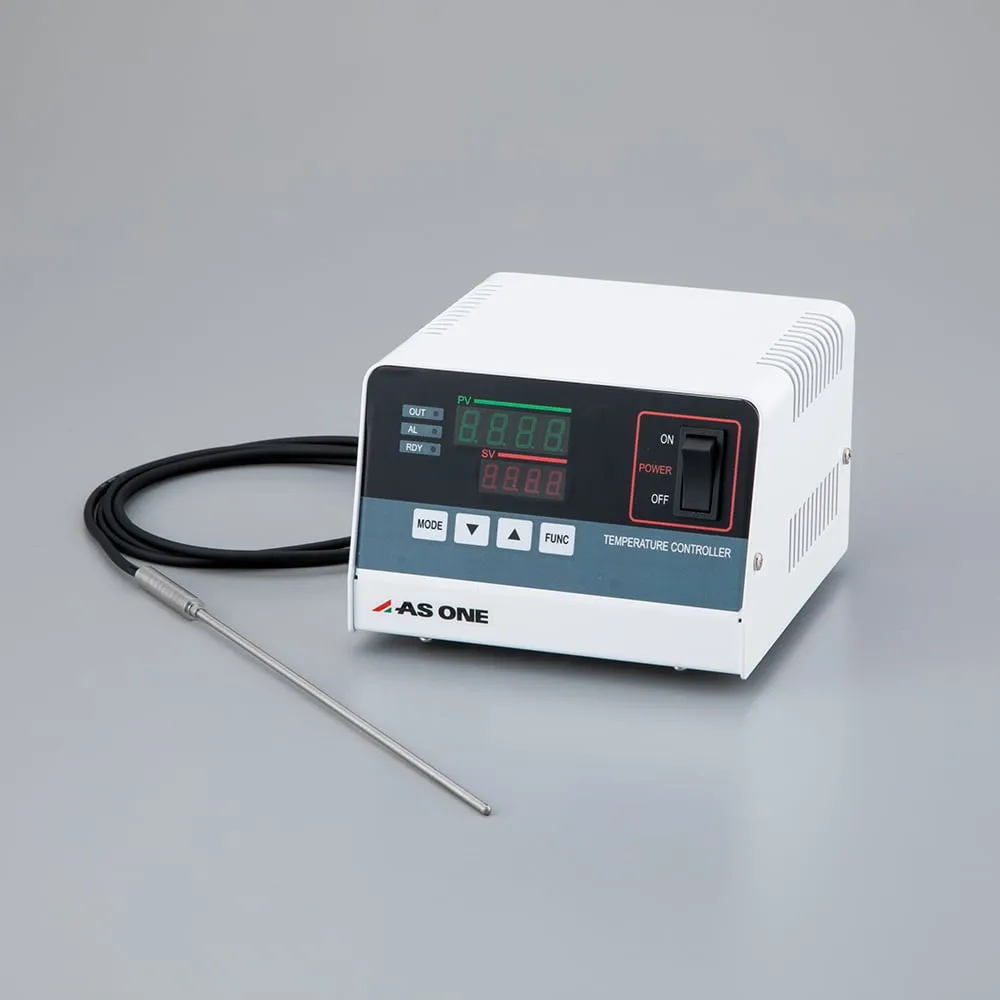

1-5719-21 Free Power Digital Temperature Regulator -19.9 to + 99.9 deg. C Pt 100 ohm TS-PG
Product Description
Product Model: 1-5719-21Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-5719-21
Product Brand: AS ONE Corporation
Features
- SSR matching PID auto-tuning allows for more precise temperature control.
- 100~200 VAC power supply is optional.
Spec
- Setting range (deg. C): -19.9 to + 99.9
- Minimum Display Units (deg. C): 0.1
- Number of pieces: 1
- Sensor sheath material: SUS 316
- Sensor dimensions: phi 3.2 x 200 mm
- Cable length: 2 m
- Safety features: Overrise prevention relay
- Temperature control accuracy: +/- 0.3% FS +/- 1 digit
- Temperature control: PID control (auto-tuning/SSR system)
- Attached sensor: Pt 100 ohm
- External dimensions: 135 x 145 x 95 mm
- Power supply: 95 ~ 240 VAC 50/60 Hz 15 A
- Connection capacity: Resistance load MAX 15 A
- Accessories: Wire with 100 V 3 P plug, 200 V wire + ground wire, 3 temperature sensors, 3 ground wires * Outlet plug not included for single-phase 200 V.
- *Using the included K thermocouple sensor, the measurement range is 0 ~ 750 degrees Celsius.
- *Install the product in such a way that the temperature of the sleeve is below 100 degrees Celsius.
