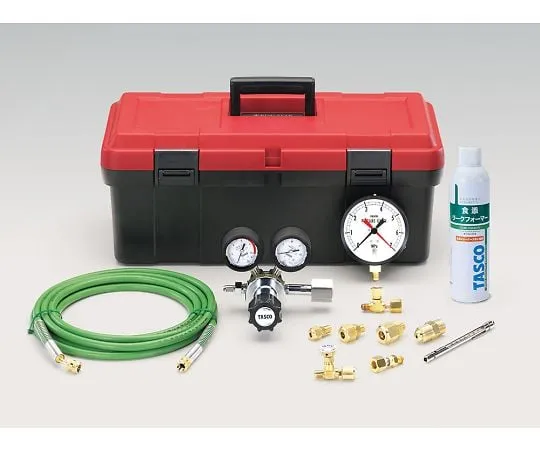

64-0796-12 N2 Pressurization Kit for Airtight Test TA385BG
Product Description
Product Model: 64-0796-12Product Brand: ICHINEN TASCO C […]
Contact Us
Product Details
Product Model: 64-0796-12
Product Brand: ICHINEN TASCO CO., LTD.
Features
- After the piping work is finished, the piping is pressurized and sealed with nitrogen gas, and the leakage is inspected by the movement of the needle of the pressure gauge.
Spec
- pressure of ***: 5.0 to MPa
- Chisso Regulator: Secondary Side/0 to 10.0 MPa x 1 (TA 380 N)
- Pressure Gauge with Installation Needle: Pressure Gauge = 0 to 7 MPa, φ 100 (TA 148 AF -370)
- T-type Adapter: Hose Connection Port = 1/4 "Flare Female (with Mushi Press) x 1/4" Flare Male (with Mushi) x 1 (TA 382 KH)
- Connection Pressure Hose: 5 m x 1 (TA 381 KG -5)
- open and close Valve: 1/4 "Flare Female (Mushi Press) x 1/4" Flare Male x 1 (TA 382 KA)
- R 410 A Adapter: 1/4 "Flare Male (with Mushi) x 5/16" Flare Female (with Mushi Press) (TA 223 L)
- Gas Leakage Detector: 1 (TA 434 TR)
- Flare Union for Copper Tube Connection: 1/4 ", 3/8", 1/2 "1 for Each (TA 241 TA -2, -3, -4)
- On Socket: W 22 Peak 14 Male x W 23 Peak 14 Male (TA 380 DS)
- Alcohol thermometer: -20 to 50 °C (TA 413 SA -2)
- Storage Case: 480 x 250 x 230 mm x 1
