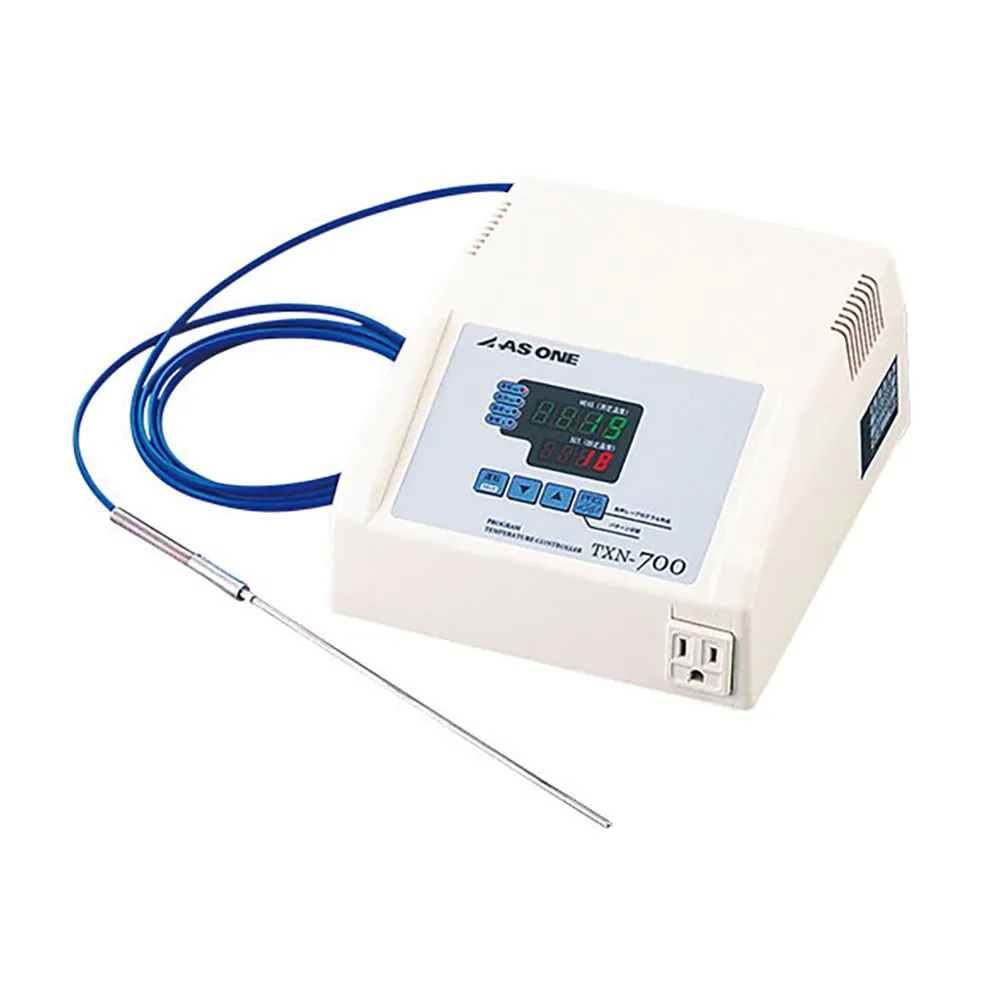

1-5481-31-20 Digital multi-Temperature Controller (with Program Control Function) with Calibration Certaificate TXN-700B
Product Description
Product Model: 1-5481-31-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-5481-31-20
Product Brand: AS ONE Corporation
Features
- Flagship model with temperature gradient control.
- It is equipped with a program control function that can store 4 types of programs with up to 16 steps.
- Creating a program is as simple as setting the temperature and time.
- Temperature and time management with temperature gradients at different steps is possible.
Spec
- Temperature setting range: 0 ~ 500 degrees C
- Power supply: 100 VAC 50/60 Hz
- Timer setting time: 1 ~ 99 hours, 59 minutes
- Capacity: AC 100 VmAX 12 A (resistance load)
- Temperature control method: PID control
- Output control method: Voltage output by SSR
- Safety device: Power switch with built-in current breaker, excessive rise prevention mechanism
- Power cord: About 1.8 m (with 3 P plug)
- Size: 185 x 210 x 98 mm
- Temperature indication accuracy: +/- 2 degrees C or FS +/- 0.3% + 1 digit, whichever is greater
- Timer type: Compatible with program
- Sensor Type: K Thermocouple
- Program settings: Up to 16 steps (4 types can be memorized)
- *Sensors are sold separately.
- *For K thermocouples only.
- The calibration points are the minimum temperature and the maximum temperature of 2 points.
- *Calibration only without sensor.
- *If you would like to calibrate the unit and sensor together, please contact us separately.
- *If you would like additional points, please contact us separately.
