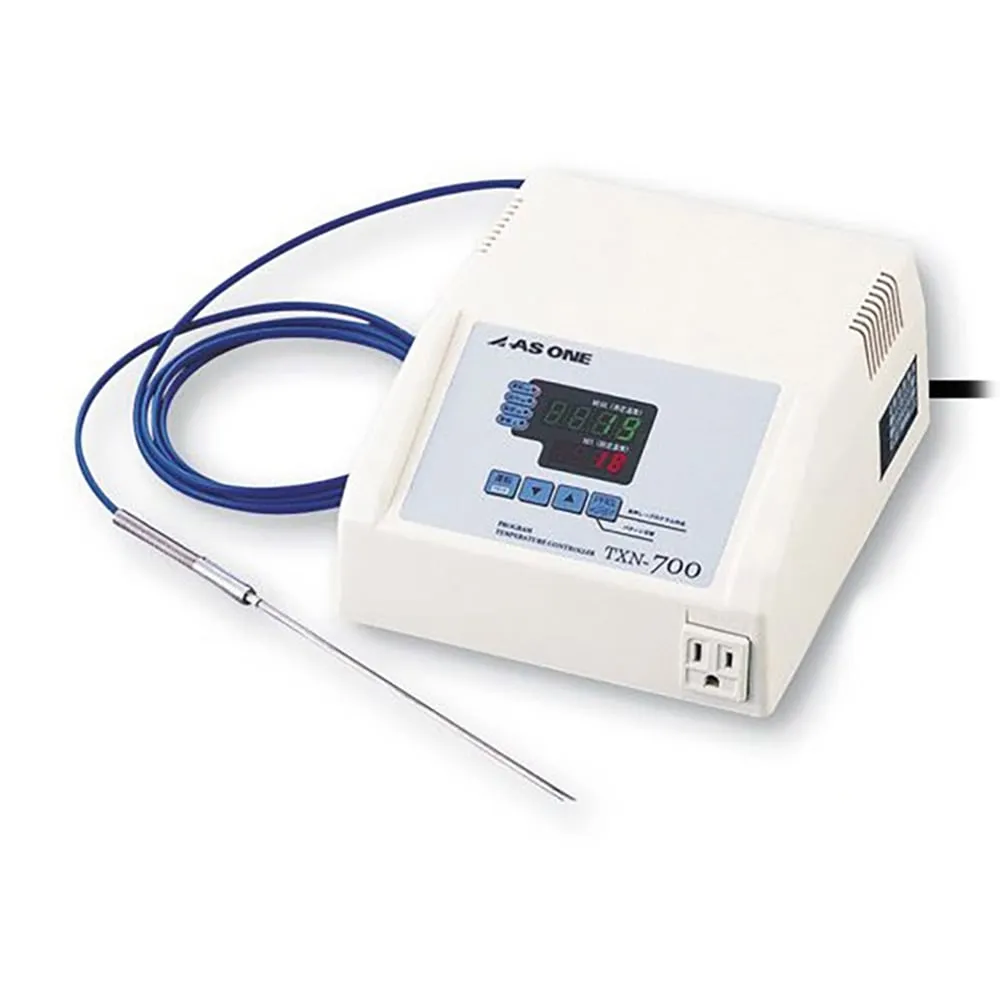

1-5481-31 Digital Multi-Temperature Controller TXN-700B
Product Description
Product Model: 1-5481-31Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-5481-31
Product Brand: AS ONE Corporation
Features
- Flagship model with temperature gradient control (700B).
- It is equipped with a program control function that can store 4 types of programs with up to 16 steps.
- Creating a program is as simple as setting the temperature and time.
- Temperature and time management with temperature gradients at different steps is possible.
Spec
- temperature settings range (degrees C) : 0 to 500
- power supply: AC100V 50/60 Hz
- Timer settable time: 1 to 99 hours 59 minutes
- Connection capacity: AC100V MAX 12 A (resistive load)
- Temperature Control Method: PID Control
- Output control method: Voltage output by SSR
- Safety Device: Overcurrent F***/Excess Temperature Rise Prevention Function
- power cord Station : Approximately 1.8 m (With 3P Plug)
- Size: 185 x 210 x 98 mm
- Temperature indication accuracy: ± 2 ° C or FS ± 0.3% + 1 digit, whichever is larger
- Timer Type: Program supported
- Sensor Type: K class thermocouple
- Program Setting: Maximum 16 Steps (4 Type memory available)
- *Sensors are sold separately.
- *For K class thermocouple only.
