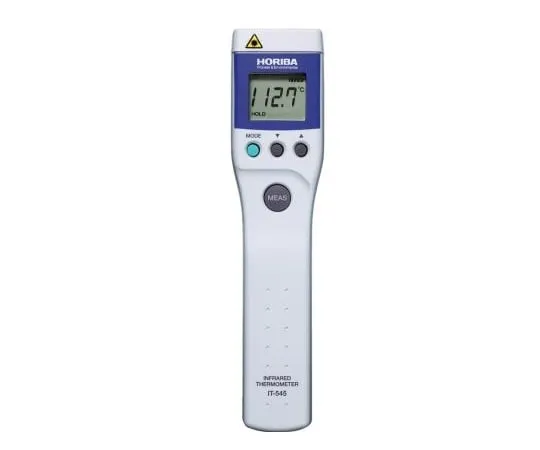

1-5309-13-20 Accurate Radiation Thermometer (narrow Field High Temperature Type) with Calibration Certaificate IT-545NH
Product Description
Product Model: 1-5309-13-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-5309-13-20
Product Brand: AS ONE Corporation
Features
- A unique structure that is resistant to environmental temperature changes has been adopted, providing excellent stability in measured values and greatly reducing drift.
- It measures the temperature of a circular area with two laser markers as its diameter.
Spec
- Measuring range (deg. C): -50 to + 1000
- Resolution (degrees C): -50 to 0/1, 0.0 ~ 199.9/0.1, 200 to 1000/1
- Accuracy: within - 50 ~ 0 degrees C/+/- (5% rdg + 1.5) degrees C, within 0.0 ~ 199.9 degrees C/+/- 1.0 degrees C, within 200 ~ 1000 degrees C/+/- (0.5% rdg + 0.5) degrees C
- Reproducibility: within +/- 1 degrees C (- 50 ~ 0 degrees C), within +/- 0.3 degrees C (0.0 ~ 199.9 degrees C), within 1 degree C (200 ~ 1000 degrees C)
- Emissivity: 0.10 ~ 1.00 (0.01 steps)
- Distance factor (D: S): 12.5: 1
- Response time: 0.8 seconds or less
- Features: Maximum/minimum value display, hold, laser marker (2 points)
- Other features and accessories: Auto Power Off
- Power supply: 4 AAA batteries (included for testing)
- Size (mm): 40 x 170 x 36
- Weight (g): approximately 140
- *The standard calibration points are three points: low temperature, medium temperature and high temperature. If you would like additional points, please contact us separately.
