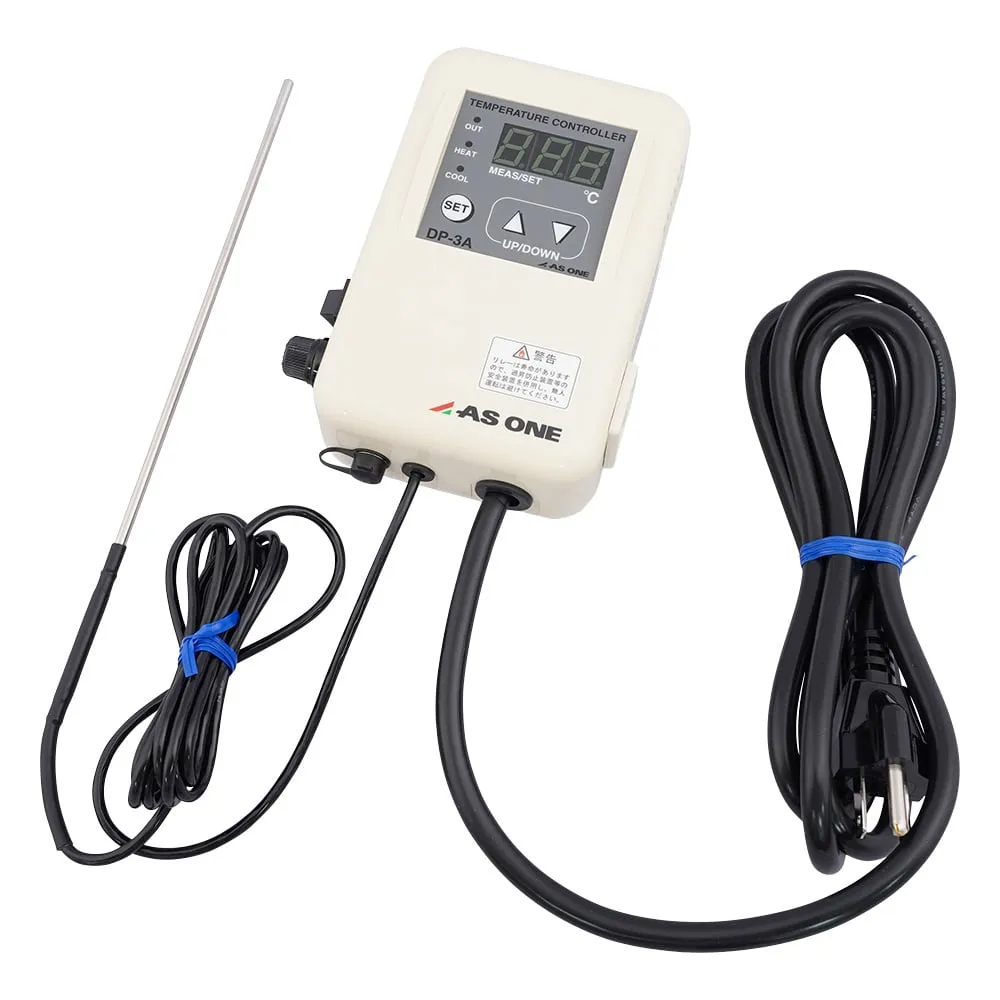

1-5238-41-20 Digital Pearl Thermo Calibration Certificate DP-3Aα
Product Description
Product Model: 1-5238-41-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-5238-41-20
Product Brand: AS ONE Corporation
Features
- Since forward and reverse operation can be switched, it can be ***d for temperature control of cooling equipment as well as heating equipment such as heaters.
- 4~20 mA analog data output (external leads required).
Spec
- Temperature setting range (deg. C): 0 ~ 200
- Minimum Display Units (deg. C): 1
- Number of pieces: 1
- Indicated accuracy: +/- 3 degrees C (including sensor error) (external lead wire required)
- Control method: ON/OFF control
- Temperature Sensor: Pt 100 ohm/phi 4 x 200 mm/cable length 2 m
- Output system: Voltage output by relay contact, from 3P outlet on the side of the body
- Power rating: 100 VAC 50/60 Hz max 12 A (resistance load)
- Safety features: Overcurrent protective f*** (15 A), Burn-out circuit when sensor fails
- Data output: 4 ~ 20 mA (fixed at -10 to + 240 degrees) Analog output
- Size: 95 x 150 x 47 mm (excluding protrusions)
- Power cord length: 2.0 m (3 P plug)
- Calibration points are 25 degrees Celsius and 2 points of 80 degrees Celsius. If you would like additional points, please contact us separately.
