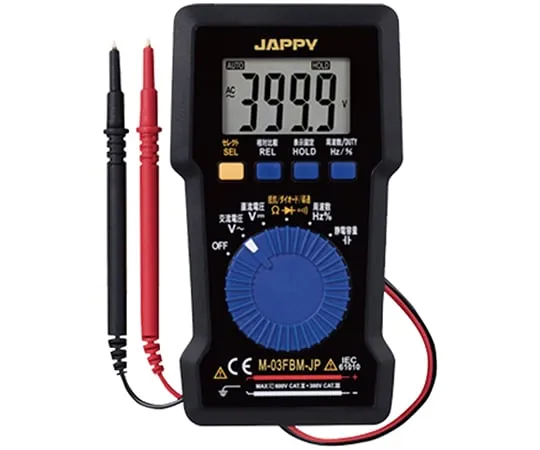

64-0773-70 Digital Tester with Magnet M-03FBM-JP
Product Description
Product Model: 64-0773-70Product Brand: JAPPY Features […]
Contact Us
Product Details
Product Model: 64-0773-70
Product Brand: JAPPY
Features
- Thin and Multifunctional
- Can be attached to a metal surface with a built-in magnet on the back
- Has an auto power-off function to prevent battery drain
- Backlit
- Test lead body storage type with a thin size of about 12.5 mm
- Non-contact power inspection function
Spec
- Operating principle: Double integration method
- Display: LCD, max display "3999"
- Range switching: Auto Range
- Polarity indication: Automatic switching, "-" chisel indication
- Sampling: 3 times/second
- Auto Power Off: Approximately 30 minutes (can be released)
- Operating temperature and humidity: 0 to + 40 degrees C, 80% RH or less (but no condensation)
- Storage temperature and humidity: -10 to + 60 degrees C, 70% RH or less (but no condensation)
- Used in battery: CR 2032 (3 V) lithium battery x 1 piece
- battery Life: About 120 hours
- external dimensions: W 70 x H 127 x D 12.5 mm
- Mass: about 101 g (including battery)
- Test lead length: about 70 cm
- Compatible standards: IEC 61010 -1 Compliant CAT II 600 V, CAT III 300 V
