Features

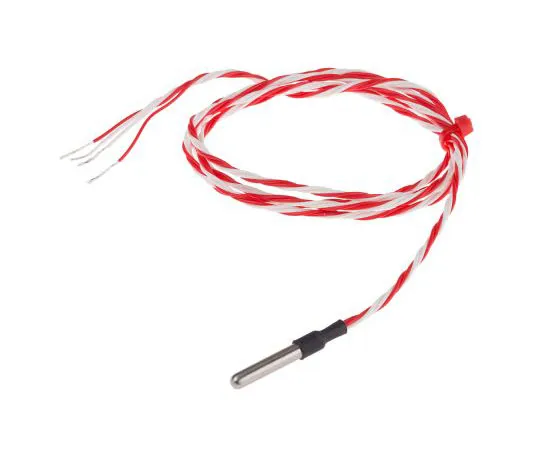

• RS Pro General Purpose 4 Wire Pt100 PRT Probe with Teflon Insulated Lead
• RS Pro High Quality, Reliable Pt100 PRT (Platinum Resistance Thermometer) or RTD (Resistance Temperature Detector) Detection Probe. The RTD probe has a robust structure with a detection element ho***d in a high stiffness 316 stainless steel sheath. Four-core twisted lead wire, flexible Teflon insulation with excellent durability. This platinum resistance thermometer provides accurate and reliable temperature measurement for a variety of applications.
• An RTD is a type of temperature sensor that is based on the correlation between metal and temperature. The higher the temperature of a metal, the greater its resistance to current. You can measure this resistance and convert it to a temperature reading. "Pt" in "Pt 100 RTD" represents platinum (platinum wire or film) and "100" means that the temperature sensor has a resistance of 100 ohms at 0°C. Platinum is the most reliable metal beca*** its resistance varies linearly over a wide range of temperatures.
• What is a Pt100 probe?
• The Pt100 probe is the most robust form of RTD. The Pt100 temperature sensor element is mounted inside the metal sheath or probe. This protects the sensor element from being damaged by the surrounding environment when it is inserted into the process being measured. The other *** of the probe is terminated by an insulated four-wire tail connected to the thermometer.
• Features and Advantages: High stability detection element, high precision output IEC60751 Class B accuracy/tolerance Temperature measurement range: -50→+200°C 4 leads for accurate readings 2, 3, or 4 wire Pt100 Lead connection to equipment High rigidity 316 Corrosion-resistant stainless steel sheath protects detection element Highly flexible Teflon insulation provides thermal and electrical insulation and impact strength, protecting against moisture, corrosion, and abrasive chemicals even at extreme temperatures Applications: These robustly designed PRT sensor probes are ideal for a variety of general-purpose industrial applications, including:
• Air Conditioning and Refrigeration Chemicals Industry Plastic Processing Stoves and Grills Air, Gas and Liquid Temperature Measurements Exhaust Gas Temperature Measurements Food Processing Lab Frequently Asked Questions: How does the PRT temperature sensor work?
• A PRT temperature sensor operates by installing a sensor element (or process ***) in the device or incorporating it into a process that requires temperature measurement. The higher the platinum resistor thermometer, the greater the resistance to current. Each time the temperature rises by one degree, the electrical resistance also changes according to the set ratio. This ratio is called the temperature coefficient. For platinum, this ratio is 0.00385 Ω/Ω/°C. For Pt100 with a resistance of 100 Ω, the increase in resistance per 1°C is 0.385 Ω. Therefore, the sum of the resistance measurements can be measured and converted to temperature.
• Resistance Measurement Method
• The resistance value generated by the temperature sensor is measured when a current flows through one of the wires and a voltage is generated. This voltage is measured using an appropriate bridge or voltmeter and the resistance value is calculated according to Ohm's law (R=V/I). Once the resistance is known, it can be converted to a temperature measurement using a calibration equation or Pt100 table. The measured resistance value can also be automatically converted to a temperature measurement value by connecting the temperature measuring device or calibrator to the lead wire of the probe.
