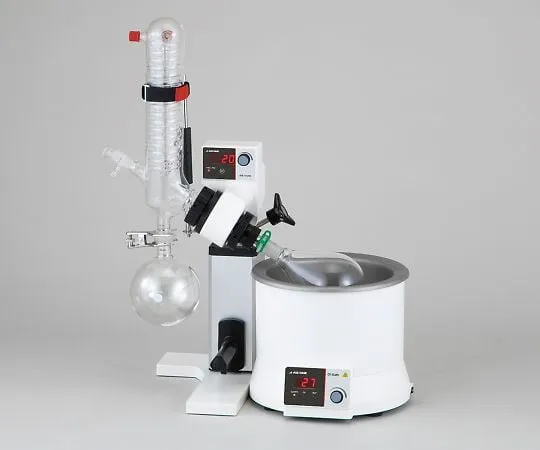

4-2845-01 Rotary Evaporator Main Unit Set ARE-V1200
Product Description
Product Model: 4-2845-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-2845-01
Product Brand: AS ONE Corporation
Features
- Brushless motor with excellent durability allows stable rotation for a long time.
- Experiment at any height with smooth vertical movement.
- You can adjust the angle of the flask to suit your situation.
- It is effective for drying powder, etc., beca*** it has a reverse/reverse function.
- The PTFE vacuum seal allows the *** of various solvents and maintains a stable reduced pressure.
- An evaporator set that is essential for organic chemical experiments is now available at an affordable price!!
Spec
- Specifications: Body Set
-
- Size: Body/440 x 320 x 450 to 670 mm (With Cooler Set/530 x 320 x 690 to 910 mm)
- rotation speed : 20 to 200 rpm
- motors: DC brushless motors
- Cooling area: 1200 cm2
- displaying: LEDs
- power supply: AC100V 50/60 Hz
- Weight: about 7 kg
- With Forward/Reverse Function (Interval time: 1 to 999 seconds)
-
- Size: 300 x 320 x 240 mm
- capacity: about 4.5 L
- displaying: LEDs
- temperature settings range : R.T. + 5 ° C to 180 ° C (1 ° C unit)
- Temperature Adjustment Accuracy: ± 3 ° C
- Maximum Power Consumption: 1000 W
- Weight: about 3 kg
-
- rotary evaporator body
- Cooler (A 18900476)
- Oil bath (ARE-V 1200 - H)
- Eggplant Type Flask 1 L (24/40)
- Receiving Flask (A 18300110)
- Rotary Joint (A 18300206)
- Clip (A 18900188)
- Vacuum Seal (A 18202027)
- *Use the adapter (5 pieces's foot) together with the reducing tube (4 -424 -06).
- *vacuum pumps, vacuum hose not included.
