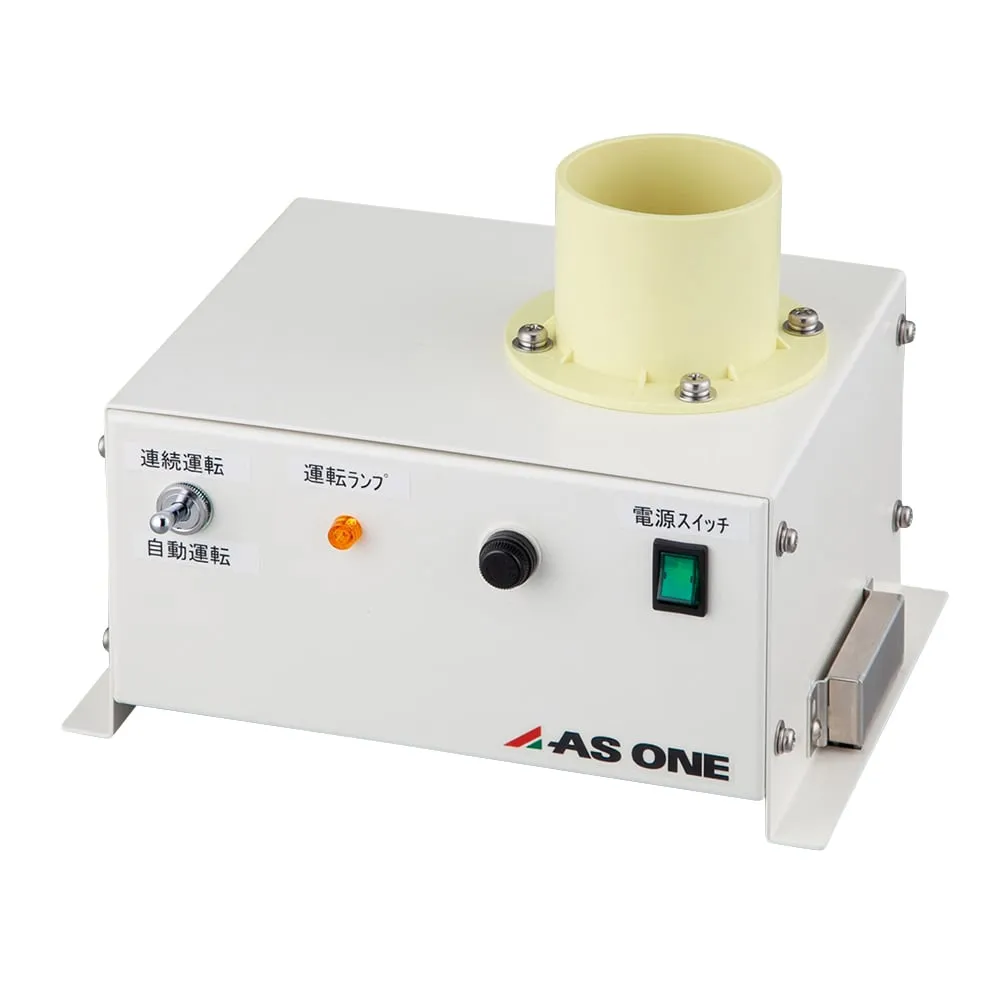

4-2689-01 Exhaust auxiliary unit EXH-01
Product Description
Product Model: 4-2689-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-2689-01
Product Brand: AS ONE Corporation
Features
- It assists the exhaust from the measuring hole and promotes the discharge of steam and oil fumes in the cabinet.
- By installing a duct (sold separately), it is easy to s*** exhaust to a draft or ventilation fan.
- The automatic operation mode starts the exhaust automatically when the temperature inside the unit becomes high.
Spec
- Duct Flange Diameter (mm): Φ 65
- Size Diameter (mm): 205 x 165 x 198
- main body material : Steel (painting)
- air volume (50/60 Hz) : 0.36/0.44 m3/min * Fan Only ability
- Maximum Static Pressure (50/60 Hz): 53/76 Pa * ability for the fan only
- Switching Modes: Continuous Operation/Automatic Operation
- mounting: magnet attraction
- power supply: AC100V 50/60 Hz 0.08 A
- power supply cable length : 2 m (2P Plug)
- *There is no function to return air to the inside of the refrigerator.
- *Surface temperature of installation area: up to 90 ° C (Dryer set temperature: about 250 ° C)
