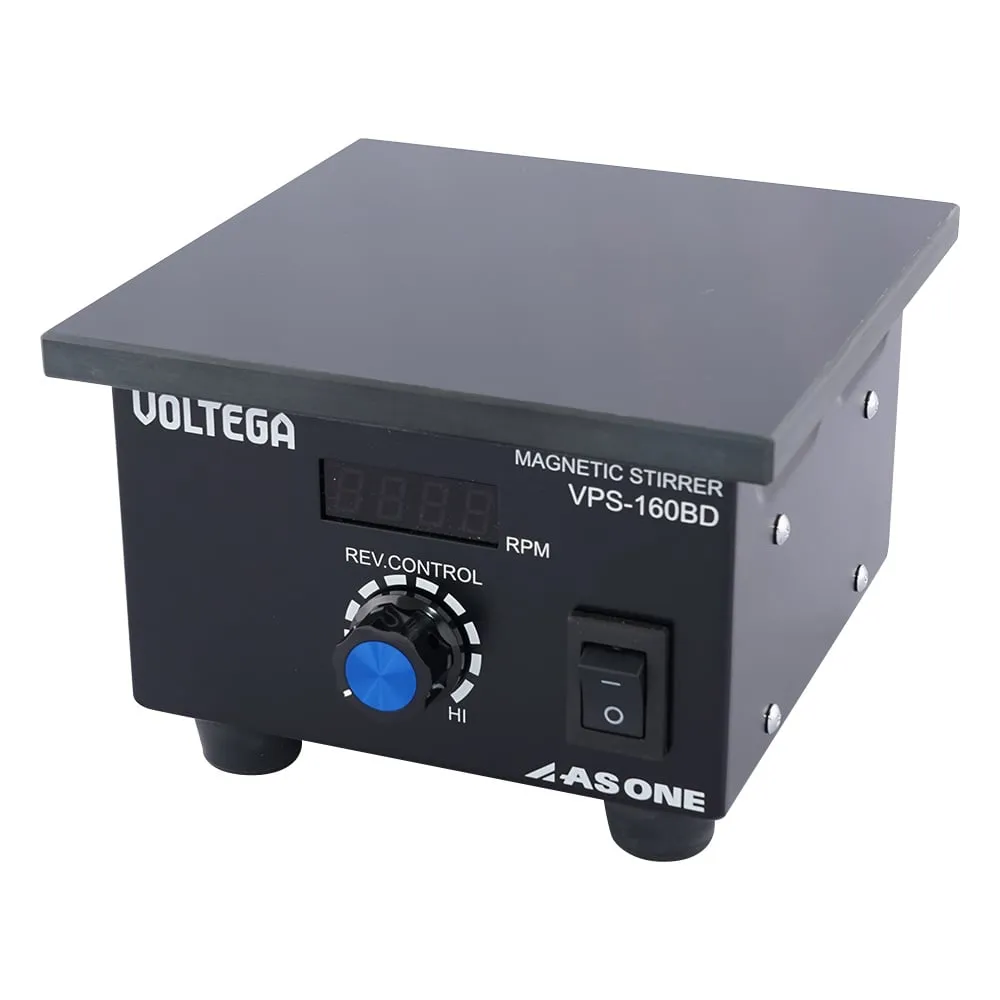

3-6757-01 VOLTEGA Power Stirrer (Bakelite Top Plate) 160 x 160mm VPS-160BD
Product Description
Product Model: 3-6757-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6757-01
Product Brand: AS ONE Corporation
Features
- It ***s a strong magnet and induction motor for high viscosity and high volume stirring.
- Feedback control by the taco generator provides stable rotation from low speed to high speed.
- Achieves stable rotation even in the low rotation range.
- The support rod option is available.
- Phenol Resin Top Plate Features: Excellent oil and acid resistance.
- The digital type makes it even easier to control.
- It can be ***d as a stand replacement with a combination of support rods and a dedicated metal fitting attached to the back.
Spec
- Model number: VPS-160BD
- Main unit size (mm): 160 x 160 (171) x 111
- Top board size (mm): 160 x 160
- Material: SPCC (acrylic coating), Top board/Phenol Resin
- Motor: Induction motor
- Top board material: Phenol Resin
- Top board size: 160 x 160mm
- Rotation speed: 60 - 1350rpm
- Motor: 3W
- Stirred capacity: 10L
- Magnet/strength (T): Neodymium/0.42
- Power supply: AC100V 50/60Hz, 2.5m 3P plug (with 2P conversion adapter)
- Maximum power consumption: 20/25W
- Main unit size: 160 x 160 (171) x 111mm (Size including projections is described in ())
- Weight: 2.2/2.4kg
- *Stirring capacity and recomm***ed stirring bars are indicated when the target is water.
- *The size of the stirring bar to be ***d varies dep***ing on the capacity and the viscosity. Use properly dep***ing on the purpose.
