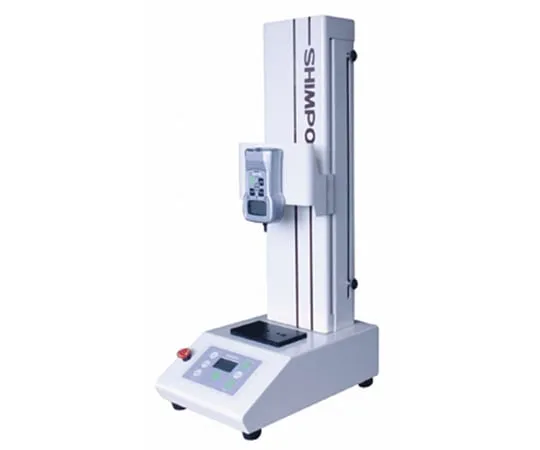

64-0697-90 electric stand FGS-50E-H
Product Description
Product Model: 64-0697-90Product Brand: NIDEC DRIVE TEC […]
Contact Us
Product Details
Product Model: 64-0697-90
Product Brand: NIDEC DRIVE TECHNOLOGY CORPORATION
Features
- 4 Operation Modes: Manual, Dynamic, 1 Cycle, Reciprocating/Repeating
- The feed speed can be selected from 2 types: low speed 6~180 mm/min and high speed 20~600 mm/min.
- The input power is 100~240 V AC wide range
- Safety and security front cover
- From the display (LCD) to various settings, it is easy to see and operate.
Spec
- Compatible models (compatible digital force gauge): FGP series (0.2-50), FGPX (0.2-50)
- Measured load: 500 N (50 kg)
- Load capacity: 500 N (50 kg)
- Feed speed: 20-600 mm/min
- Speed setting: Set the speed using the operation panel.
- Stroke: 400 mm
- Display: Display LCD 3 digits, movement speed, operation mode
- Moving speed: 20-600 mm/min
- Operating modes: Manual (MAU), Dynamic (JOG), Cycle 1 (SIG), Reciprocating (CON)
- Input: Stopped at overload signal of overload input FGPX (FGP)
- Measurement table: 150 x 93 mm
- Operating temperature range: 0-45°C(However, no condensation)
- Power Supply: 100 VAC - 240 VAC ±10%
- Size: 220 x 680 x 358 mm
- Weight: approx. 20 kg
- Accessories: 1 Connection Cable, 1 Power Cable, 1 Cable Clip, Socket Bolt (M4 x 12 Force Gauge Mounting 4 Pieces, M6 x 12 Jig Mounting 2 Pieces), 1 Hex Spanner for M8, 1 for M4, 1 Owner's Manual, 1 Warranty
