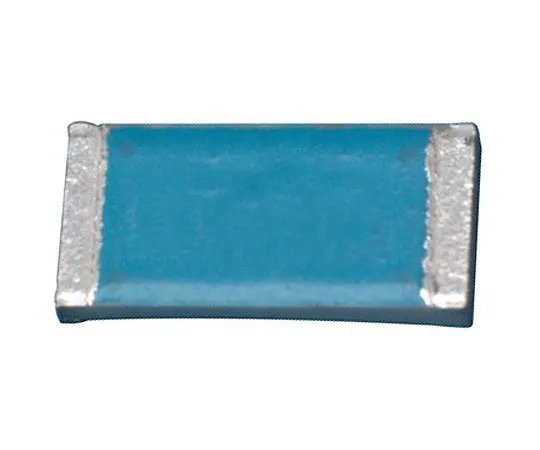

63-4669-16 Thick Film Chip Resistor RK73G1JTTD1000D
Product Description
Product Model: 63-4669-16Product Brand: KOA Features AE […]
Contact Us
Product Details
Product Model: 63-4669-16
Product Brand: KOA
Features
- AEC-Q200 Certified 0603 Thick Film Chip Resistor, RK73G Series 0.5% KOA's RK73G Series is a highly accurate surface mount resistor.
- With a metal-glazed thick film structure and lead-free termination, this resistor features high reliability and stability.
- The temperature coefficient of resistance (TCR) of this precision resistor is ±50ppm/°C.
- AEC-Q200 certified, ideal for automotive applications.
Spec
- Quantity: 1 bag (100 pieces)
- Resistance: 100 Ω
- Technology: Thick Film
- Package/Case: 0603
- Tolerance: ± 0.5%
- Rating Power: 0.1 W
- Temperature Coefficient: ± 50 ppm/deg.
- Length: 1.6 mm
- Height: 0.45 mm
- Series: RK 73 G
- Operating temperature Min: -55 °C
- Operating temperature mAx: + 155 °C
- Minimum temperature coefficient: -50 ppm/deg.
- RoHS Compliance Status: Compliance
- Securities Code: 123 -4338
