Electronic/Electrical Parts and Controll Equipments
63-4669-11 Thick Film Chip Resistor 2012 Size RK73H2ATTD49R9F
Product Description
Product Model: 63-4669-11Product Brand: KOA Features AE […]
Contact Us
Product Details
Product Model: 63-4669-11
Product Brand: KOA
Features
- AEC-Q200 Certified 0805 Thick Chip Resistor, RK73H Series 1% KOA's RK73H Series Precision Resistor is a compact and lightweight solution.
- This precision resistor with a three-layer electrode structure has excellent reliability and high stability.
- The *** of metal glaze thick film provides excellent weather and heat resistance.
- This precision resistor is ideal for both flow and reflow soldering and is ***d in automatic mounting machines.
- Except for the 01005 case size, all RK73H chip resistors are AEC-Q200 certified and suitable for automotive applications.
- Small, lightweight, stable and reliable lead-free terminal jumper resistor is also included.
Spec
- Quantity: 1 bag (50 pieces)
- Resistance: 49.9 Ω
- Technology: Thick Film
- Package/Case: 0805
- Tolerance: ± 1%
- Rating Power: 0.25 W
- Temperature Coefficient: ± 100 ppm/K
- Dimensions : 2 x 1.25 x 0.5 mm
- Depth: 1.25 mm
- Series: RK 73 H
- Operating temperature Min: -55 °C
- Operating temperature mAx: + 155 °C
- case styles: mold
- RoHS Compliance Status: Compliance
- Securities Code: 123 -4330
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-5011-31 Vishay Single Layer Ceramic Capacitor SLCC 180pF 3kV dc ±10% S3N Dielectric F Series Through Hole F181K29S3NR63K7R
model: 63-5011-31
brand: Vishay
Electronic/Electrical Parts and Controll Equipments

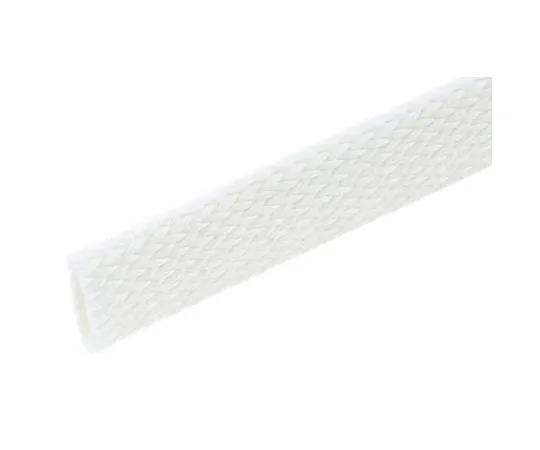

63-7665-09 RS Expandable Braided Fibreglass Natural Cable Sleeve, 10mm Diameter, 5m Length 668-1295
model: 63-7665-09
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

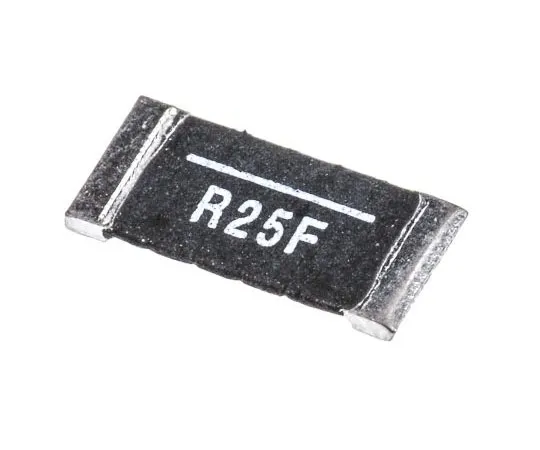

63-7688-76 250mΩ 2512 Metal Strip Low Ohmic Surface Mount Fixed Resistor ±1% 1W - WSL2512R2500FEA WSL2512R2500FEA
