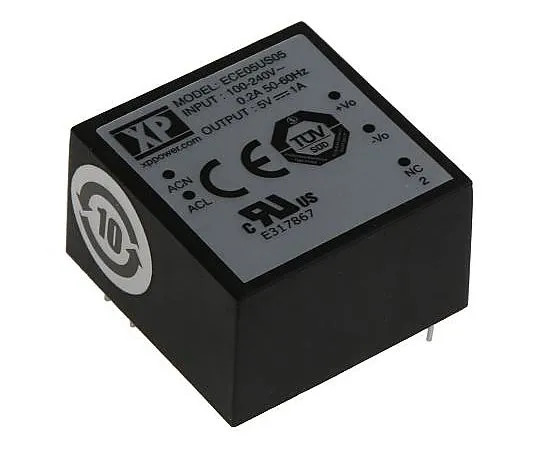

63-4667-50 AC/DC Converter 5V dc1A Sealed ECE05US05
Product Description
Product Model: 63-4667-50Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-4667-50
Product Brand: XP Power
Features
- XP Power-ECE Series 5/10 W AC-DC Power Supply
- The ECE series of XP Power is an excellent 5 ~ 10 W board-mounted power supply.
- These highly reliable sealed power supplies feature an ultra-compact structure with a single output voltage of 3.3 ~ 48 V.
- It also boasts less than 0.3 W of no-load input power, peak load handling, and high efficiency of up to 85%.
- 5→10 W AC-DC Power Supply 3.3→48 V Single-Output Sealed Substrate Mounting Ultra-Small Load Free Input Power:; High efficiency up to 85% compatible with 0.3 W peak load No external parts required Operating temperature: -25→+70°C
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Output Current: 1A
- Rating Power: 5W
- Number of outputs: 1
- Input Voltage: 120 to 370 V dc, 85 to 264 V ac
- Mounting Type: PCB Mount
- Package Type: Sealed
- Length: 25.4 mm
- Width: 25.4 mm
- Depth: 15.24 mm
- Weight: 16 g
- Efficiency: 80%
- Maximum temperature: + 70 degrees C
- Minimum temperature: -25 degrees C
- RoHS compliance status: Compliance
- Securities Code: 122 -7648
