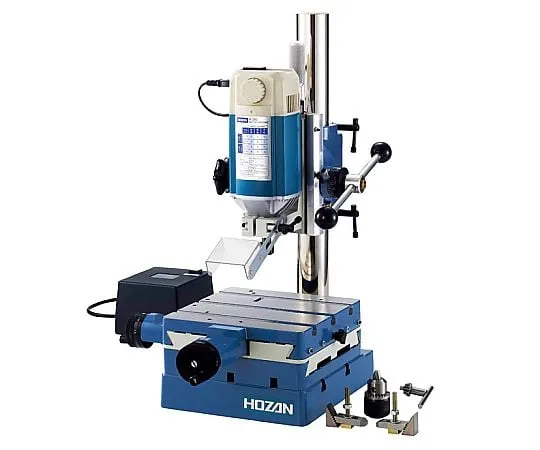

61-0485-67 Desktop Milling Machine K-280
Product Description
Product Model: 61-0485-67Product Brand: HOZAN TOOL INDU […]
Contact Us
Product Details
Product Model: 61-0485-67
Product Brand: HOZAN TOOL INDUSTRIAL CO., LTD.
Features
- Tabletop Small Milling Machine and Boring Machine
- Milling and drilling of metal, plastic, wood, etc.
- Speed can be adjusted without any step.
Spec
- Weight: 14kg
- Weight details : 5.9kg (drill stand) , 3.7kg (Table) , 1.9kg (MOTOR) , 2.5kg (trance)
- Rotation speed: 1200 to : 6000 min^-1 (Stepless adjustment)
- Power supply: 39 VAC (With a transformer for AC100V only)
- Power consumption: 200W
- Rating time: 30 minutes
- Shaft wick: 0.05mm (chuck not included)
- Chucking diameter: For Endmill 6mm φ(A blade with a diameter exceeding 6mm φcannot be ***d.) For drills: 1.0mm to 10.0mm φ
- Power cord: 1.7 m (From plug to transformer)
- external dimensions : 350 ( W ) x 505 ( H ) x 420 ( D ) mm/(Base) 200 ( W ) x 200 ( D )mm
- Slide Dimensions: Base Left/Right 140mm/Front/Back 110mm (The former 70mm and the latter 40mm)/Drill stand upper and lower 65mm
- K -280
- Accessories: Drill-Chuck Clamp
- The Endmill Drill is sold separately.
