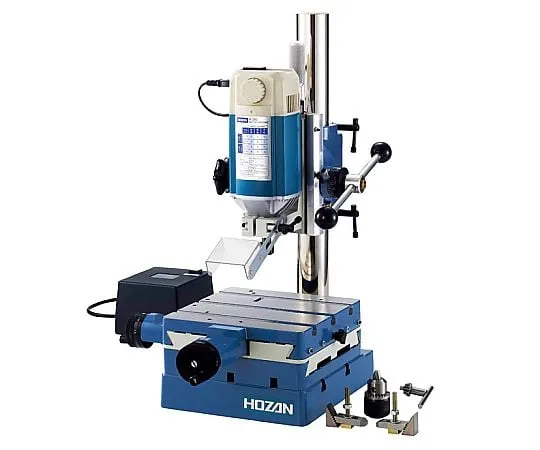

Spec

• Weight: 14kg
• Weight details : 5.9kg (drill stand) , 3.7kg (Table) , 1.9kg (MOTOR) , 2.5kg (trance)
• Rotation speed: 1200 to : 6000 min^-1 (Stepless adjustment)
• Power supply: 39 VAC (With a transformer for AC100V only)
• Power consumption: 200W
• Rating time: 30 minutes
• Shaft wick: 0.05mm (chuck not included)
• Chucking diameter: For Endmill 6mm φ(A blade with a diameter exceeding 6mm φcannot be ***d.) For drills: 1.0mm to 10.0mm φ
• Power cord: 1.7 m (From plug to transformer)
• external dimensions : 350 ( W ) x 505 ( H ) x 420 ( D ) mm/(Base) 200 ( W ) x 200 ( D )mm
• Slide Dimensions: Base Left/Right 140mm/Front/Back 110mm (The former 70mm and the latter 40mm)/Drill stand upper and lower 65mm
• K -280
• Accessories: Drill-Chuck Clamp
• The Endmill Drill is sold separately.
