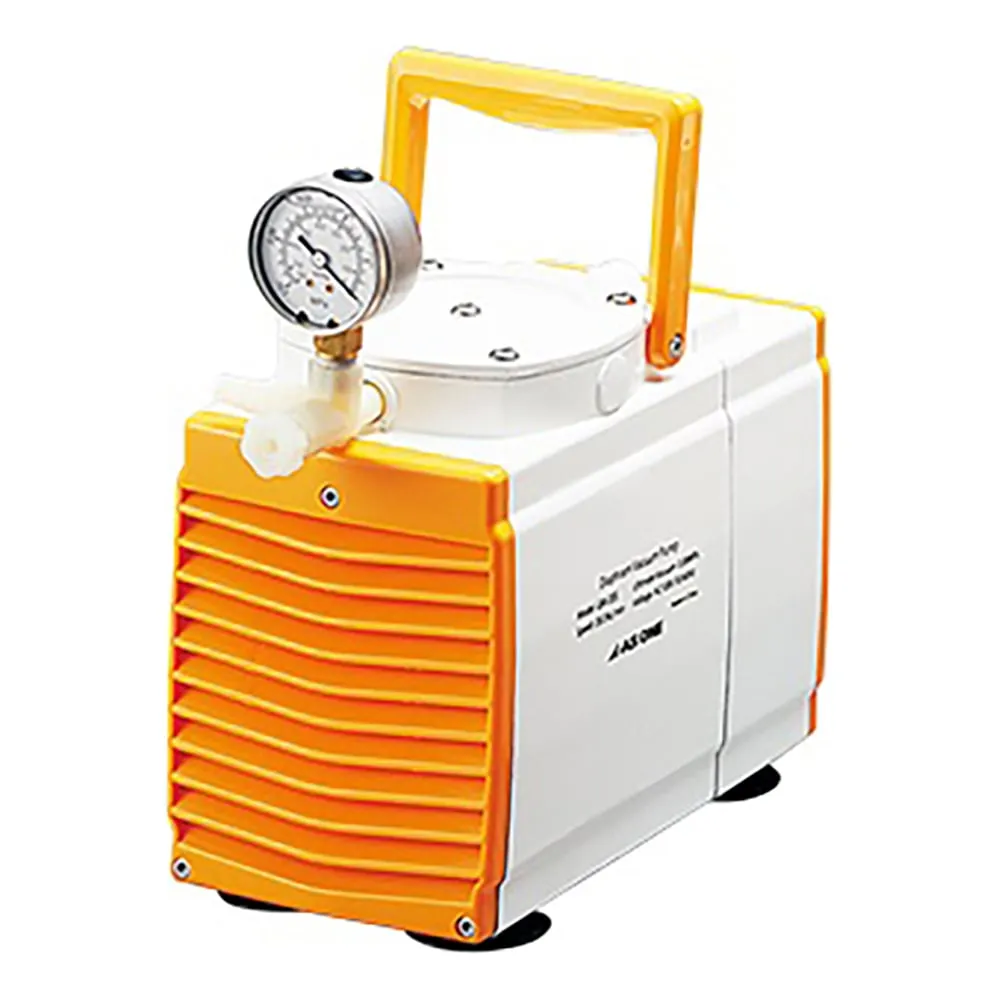

3-6719-01 Dry Vacuum Pump (Corrosion Resistance ) 1 Stage GM-20S-AC

model: 3-6719-01
brand: AS ONE Corporation

Product Description

Product Model: 3-6719-01Product Brand: AS ONE Corporati […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 3-6719-01
Product Brand: AS ONE Corporation

Features

  • Oil-free and clean diaphragm type dry pump with no contamination by oil.
  • It is suitable for vacuum applications in rotary evaporators and chromatograms.
  • All the contact gas parts are coated with PTFE (tetrafluoroethylene) so they have excellent corrosion resistance.
  • With a leak valve, the vacuum level can be adjusted.
  • It comes with a pressure gauge, so it's convenient to check the vacuum.
  • Original dry vacuum pump with corrosion resistant type.

Spec

  • Model number: GM-20S-AC
  • Specification: 1 stages
  • Achieving pressure: -0.08MPa
  • Size (mm): 270 x 130 x 210
  • Diaphragm: PTFE (poly tetrafluoroethylene) coating
  • Exhaust speed (50/60Hz): 20/24L/min
  • Noise: 50dB
  • Safety device: Motor overheat protection equipment
  • Power supply: 100VAC 50/60Hz
  • Power consumption: 200W
  • Power cord length: 1.5m
  • Connection port: φ6mm hose nipple
  • Weight: 7.5kg
