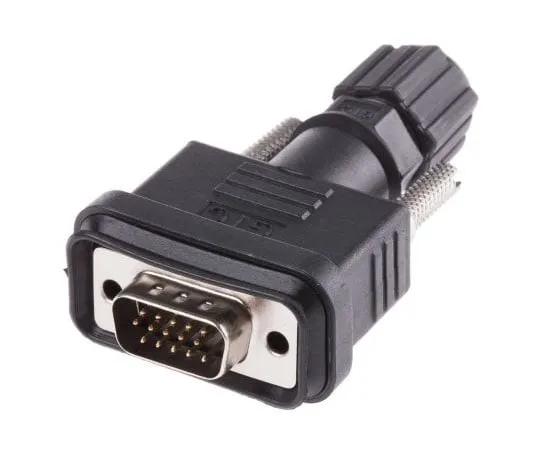

63-4666-65 RS PRO 15 Way Cable Mount D-sub Connector Plug 122-3046
Product Description
Product Model: 63-4666-65Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4666-65
Product Brand: RS PRO
Features
- RS Pro Waterproof D-Sub Field Installable Cable Mounting Connector
- A series of field-installable waterproof D-Sub connectors delivered by the trusted RS Pro brand.
- The IP67 cable mounting connector has a silicon cable *** gasket and EDPM rubber pads.
- The shell is made of professional quality SPCC grade steel with nickel plating.
- The contacts are made of high-grade copper alloy and are gold flash plated.
- This fully sealed solder bucket connector is suitable for applications where dust/water resistance is essential.
- This series is available in both male and female, with a standard 9 pole and a high-density layout 15 pole type.
- Features and Advantages: IP67 grade, fully sealed structure 4.0→8.0 mm cable Usable temperature range: -40→80°C On-site mountable High durability design RoHS Compatible Use: Industrial commercial computer interface function
Spec
- Number of Contacts:15
- G***er:Male
- Body Orientation:Straight
- Mounting Type:Cable Mount
- D Connector Type:Waterproof D-Sub
- Termination Method:Solder
- Current Rating:5A
- Housing Material:PBT
- Voltage Rating:1 kV ac
- Length:40mm
- Width:21mm
- Depth:67.5mm
- Dimensions:40 x 21 x 67.5mm
- Minimum Operating Temperature:-40°C
- CODE No.:122-3046
