Features

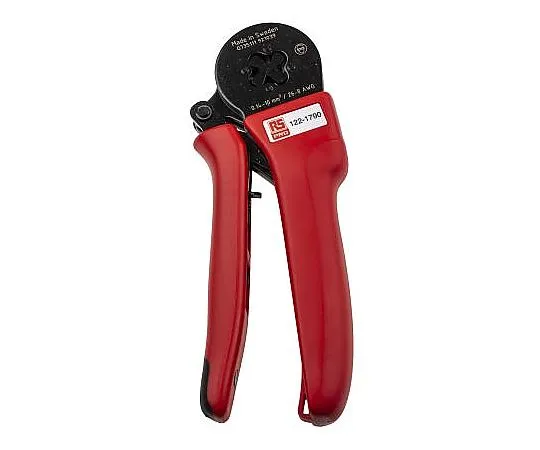

• RS PRO Ratchet Type Crimping Tool
• This RS PRO crimping tool product crimpes insulated connectors and non-insulated ferrules. This tool is small, lightweight, and has an ergonomically shaped handle for extreme comfort. In addition, a ratchet mechanism with emergency release is adopted, and the *** can be crimped properly. A non-slip grip pad at the tip of the handle allows additional force to be applied when crimping. Suitable for the 0.14→10.0 mm2/26-8 AWG wire range, it produces a professional finish every time and creates a strong connection between the wire and the terminals.
• Features and benefits: Easy to hold grip Ratchet with emergency release function ensures crimping is completed to spec Great balance, doesn't slip out of hand Supports larger ferrule sizes Choice of square or hexagonal crimping finish Wire range: 0.14→10.00 mm2 Surface pressure anti-slip grip pad Safety strap mounting opening RS Pro ratcheting crimping tool option RS Pro; 122-1790 122-1790 or RS part number:; 122-1791 122-1791 Primary ***: Maintenance and repairElectrical installation Cable assembly Frequently asked questions: What is the difference between the two?　Both types have the same specifications and performance, the only difference being the crimping profile. RS Part Number; 122-1790 122-1790 is a square crimping profile, RS part number; 122-1791 122-1791 forms a hexagonal crimp profile.
• Is it easy to ***?　This crimping tool is very easy to *** with any dominant hand and requires no serious training. Slide the terminals onto the prepared wire, place them in the crimping holes, and grip the handles together. Use both hands as needed.
• How do you maintain the product?　Moving parts must be regularly lubricated.
• If the tool is exposed to dirt, it is recomm***ed to provide lubricant * at least every 10,000 cycles.
• * Use low viscosity non-mineral oil Importance of high quality crimping When crimping tools are ***d for terminals, two crimping operations are performed simultaneously. One is the electrical connection between the conductor and the terminal. The other is insulation crimping, which provides strain relief against vibration and tension. It is important that the electrical connections are airtight, with no gaps between the wire strands and the terminals. The presence of voids can ca*** corrosion, resistance and heating, and damage electrical connections. The *** of good quality crimping tools allows for fully airtight crimping and prevents future degradation of electrical connections and insulation.
