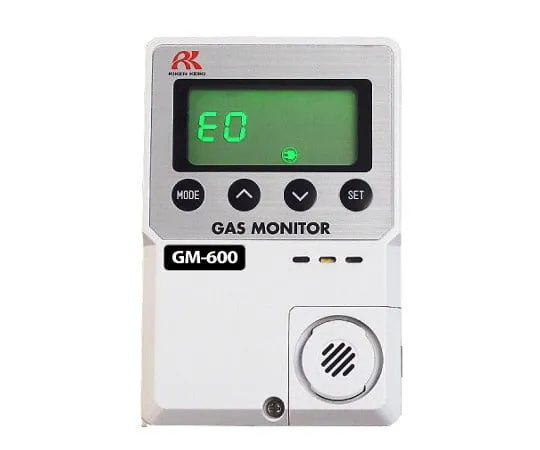

63-7822-35 Simple Stationary Type Ethylene Oxide Gas Detection Alarm integrated type 100 VAC specification GM-600
Product Description
Product Model: 63-7822-35Product Brand: RIKEN KEIKI Co. […]
Contact Us
Product Details
Product Model: 63-7822-35
Product Brand: RIKEN KEIKI Co., Ltd.
Features
- Compact design that is smaller and lighter than conventional models
- Improved button design makes it easier to ***.
- Easy installation on site!
- Vivid LCD display for outstanding visibility
Spec
- Power Supply: 100 VAC (±10%) 50 Hz/60 Hz
- Detection principle: semiconductor type
- Detection method: Diffusion type
- Detection target gas: E.O. (ethylene oxide)
- Alarm setting: 10ppm (1st)/50ppm (2nd)
- Gas alarm type: two-stage alarm (H-HH)
- Gas alarm operation: automatic return
- Alarm delay (2nd alarm, red backlight on: within 30 seconds)
- Alarm delay time: 20 seconds (buzzer only)
- Gas alarm display: 1st: Gas name (E.O.) display orange light (with orange backlight), automatic reset/2nd: Gas name (E.O.) display red light (with red backlight), buzzer sound, automatic reset
- External Output: Gas Alarm Contact (2nd), Non-Voltage Contact (2nd): Each 1a, Automatic Recovery
- Power consumption: Up to approximately 6VA
- Operating temperature and humidity range: -10~40°C (no sudden change), 20% to 85%Rh or less (no condensation)
- Structure: Wall mounted type/sensor integrated type
- External Dimensions (mm): Approx. 80 (W) x 120 (H) x 35.5 (D)
- Mass (g): about 200
