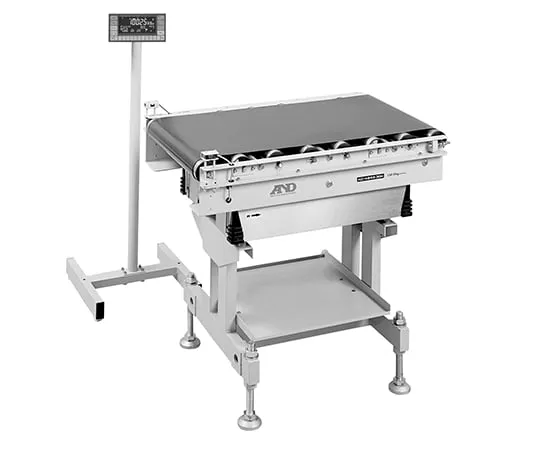

63-7049-60 Check Scale AD-4943A-30K
Product Description
Product Model: 63-7049-60Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 63-7049-60
Product Brand: A&D
Features
- It is a belt roller type check scale that accurately determines the weight and volume of large items such as bags and cardboard boxes at high speed.
- It is equipped with convenient functions such as automatic stopping of non-conforming products and 100 kinds of item code registration.
Spec
- Maximum Weighing: 30 kg
- Selection accuracy: ± 15 g
- Minimum scale: 5 g
- Roller speed: 18.9 m/min (50Hz), 22.6 m/min (60Hz)
- ability: 18 pieces/min (50Hz), 22 pieces/min (60Hz)
- Maximum Measurement Dimensions/Length (Flow Direction): 500 mm (50Hz), 480 mm (60Hz)
- Belt Width: 360 mm
- power supply Measurement Part: 200 VAC, ± 10% 50/60 Hz, 3 Phases, 0.5 A
- power supply display: 85 VAC, 250 V to, 50/60 Hz, approx. 30 VA
- Accessories: Instruction Manual
- Termination Resistor for RS -485 (100 Ω)
- power supply Cable (for Display)
- Grounding Adapter (For KO + 115)
- power supply terminal cover
- RS-485
- Terminal cover for current loop
- Load cell input terminal cover
- panel mount packing
- Rubber Foot (for Indicators) 4 pieces
- butterfly nut (AD -4943 A -30 K chisel) 4 pieces
- Bracket (AD -4943 A -30 K chisel) 4 pieces
- Level Adjuster (AD -4943 A -35 K chisel) 4 pieces
