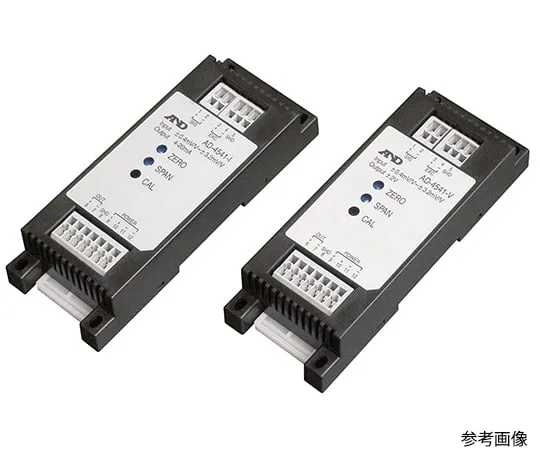

63-7049-48 Analog Signal Conditioner 4 -20 mA Output AD-4541-I
Product Description
Product Model: 63-7049-48Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 63-7049-48
Product Brand: A&D
Features
- A signal obtained from a bridge-type sensor such as a load cell, pressure sensor, or strain gauge is output at a current of 4~20 mA.
- Can be easily mounted on DIN rails or wall surfaces.
- Small, thin, and light for easy installation.
- Calibration can be performed by volume or calibration switch.
- The wide 0 adjustment range (±0.5 mV/V) and span adjustment range (0.4~3.2 mV/V) support a wide range of bridge-type sensors.
- Uses a vane clamp type terminal block for easy wiring, eliminating the need for crimping terminals.
Spec
- External dimensions: 45 (W) x 122 (H) x 24 (D) mm
- Input range: ± 3.2 mV/V
- 0 Adjustment Range: ± 0.5 mV/V
- Span Adjustment Range: 0.4 mV/V to 3.2 mV/V
- Nonlinearity: 0.05% ofF.S. typ.
- Load Cell power supply: 5 VDC 60 m Amazon. (Load cells up to 120 Ω type 1 piece or 350 Ω type 4 pieces can be ***d.)
- Zero point temperature coefficient: 2 μV/°C typ.
- Temperature coefficient of span: 200 ppm/°C typ.
- Current Output: 4 -20 mA (Load Resistance 250 Ω or Less)
- Accessories: Terminal block operating flat head screwdriver, Owner's Manual
