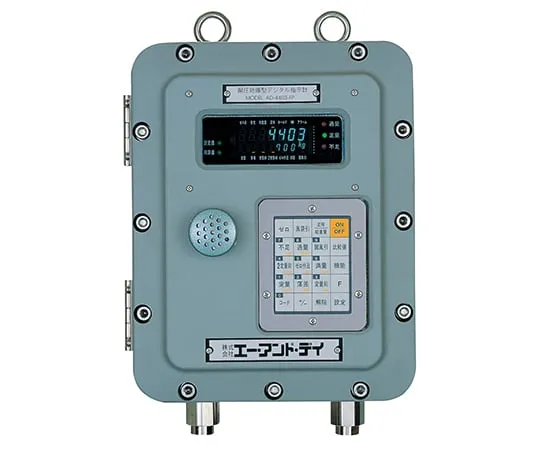

63-7049-44 Pressure Explosion-proof Indicator AD-4403-FP
Product Description
Product Model: 63-7049-44Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 63-7049-44
Product Brand: A&D
Features
- This is an explosion-proof mechanical molding winging indicator (structure: ExdIIBT5X) that conforms to the International Electrotechnical Commission (IEC) international standard, and has passed the explosion-proof electromechanical test by the Industrial Safety Technology Association. (Type Approval Pass No. C 13526)
- Ideal for measuring hazardous atmospheres such as LPG, paints and petroleum organic solvents.
- Can be ***d in one or two hazardous locations.
- High speed sampling of 100 times/second, following the measurement with fast change, display resolution of 1/10000.
- It supports a variety of measurements such as mixing, cutting and weight checking of raw materials.
Spec
- Input sensitivity: 0.3 μV/d or more (d = minimum scale)
- 0 Adjustment Range: 0 mV to 20 mV
- Load cell applied voltage: DC 10 V ± 5%, 120 mA, with remote sensing function, connectable to 350 Ω load cell 4 pieces
- Temperature Counting: 0 Point: ± 0.2 μV/°CTyp., Span: ± 8 ppm/°CTyp.
- Nonlinearity: 0.01% ofF.S.
- Maximum measurement voltage: 32 mV
- A/D Conversion Method: Delta Sigma Method
- External dimensions: 300 (W) x 380 (H) x 199 (D) mm
- Weight: approximately 26 kg
- Accessories: Hex Wrench (for open and close Main Unit), Hex Wrench (for Fixing Cable Clamp of Wire Retainer), Instruction Manual
