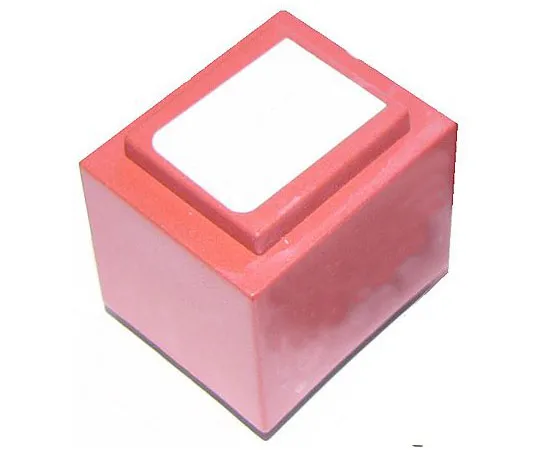

63-4664-94 2 x 6V ac 2 Output PCB Mount PCB Transformer, 0.5VA 121-3821
Product Description
Product Model: 63-4664-94Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4664-94
Product Brand: RS PRO
Features
- RS Pro Substrate Standard Trans The RS Pro substrate standard transformer is a low voltage main power transformer with a single 230 V ac 50/60 Hz primary winding.
- This transformer has secondary windings ideal for series/parallel connections and can provide a wide range of current options. 100% Electrical performance test/flash test completed. Double section bobbin, high efficiency, low temperature rise. This RS Pro transformer provides low interwinding capacity and low radiation noise.
Spec
- Secondary Voltage Rating:2 x 6V ac
- Power Rating:0.5VA
- Primary Voltage Rating:230V ac
- Number of Outputs:2
- Length:22mm
- Width:23mm
- Depth:20mm
- Dimensions:22 x 23 x 20mm
- Weight:35g
- Mounting Type:PCB Mount
- Maximum Temperature:+130°C
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:121-3821
