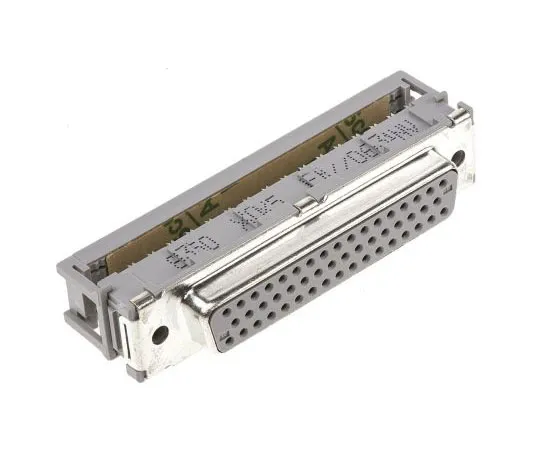

63-4664-67 IDC D-sub Connector Socket 50 Pole 8350-6005
Product Description
Product Model: 63-4664-67Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-4664-67
Product Brand: 3M Company
Features
- Part No. XXXX-XXX0 with O3.05mm flange hole Part No. XXXX-XXX5 with #4-40 UNC thread flange Part No. XXXX-XXX9 with rivet crimped flange
- Class II D metal shell connector
- Class II compliant cable mounting D connector For superior ground tools with tin plating and dimpling, Part No.; 120-6962 120-6962 and; See 192-7748 192-7748 3M Color Cord Ribbon Cable (Part No.; 120-8485 120-8485) Connector Strain Relief Sold Separately (Part No.; 121-2822 121-2822)
Spec
- Number of pieces: 1
- Male and female: female
- Number of contacts: 50
- Body orientation: right angle
- Pitch: 2.74 mm
- Contact Material: Copper Alloy
- Contact Plating: Gold on Nickel
- Housing Material: Steel
- Current rating: 1A
- Dimensions: 70.9 x 22.05 x 15.2 mm
- Series: 8300
- Depth: 15.2 mm
- Length: 70.9 mm
- Operating temperature Min: -55 degrees C
- RoHS compliance status: Compliance
- Securities Code: 121 - 0157
