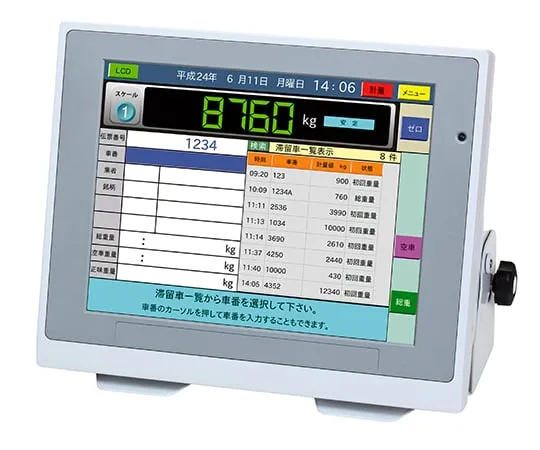

63-7049-37 Track Scale Indicator AD-4352
Product Description
Product Model: 63-7049-37Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 63-7049-37
Product Brand: A&D
Features
- Track scale indicator for analog load cells with 12.1 inch color LCD touch panel.
- When you board a truck or finish measuring, you will be guided to the next task by both comments on the screen and voice.
- All data can be backed up to the SD card.
- It is possible to write and read the registered data with the USB memory.
- Correct and quick weighing is possible.
- The display section is a TFT color 12.1 inch touch panel liquid crystal for better visibility and operability.
- You can enter alphabet, numerals, Kana and Kanji characters for registration.
Spec
- Load cell applied voltage: 5 VDC, ± 5%, 120 mA
- Number of connectable load cells: 800 Ω load cell maximum 18 pieces, 350 Ω load cell maximum 8 pieces
- Maximum Display resolution: 10,000 d
- Sampling speed: 100 times/sec (display rewriting 10 times/sec)
- Display: 12.1 inch TFT color LCD
- External dimensions: 324 (W) x 105 (D) x 262 (H) mm
- Mass: 4.3 kg
- Accessories: AC power supply Cable (1 KO 115)
- Installation Adapter (1 ET 9102)
- F*** (1 FSEAK -3.15 A)
- Load cell connector (1 JMNR -207 - PM)
- Current output connector (1JATCP0576)
- Input/output connector (Connector: 1 JI 361 J024-AG, Connector Cover: 1 JI 360 C024-B)
- RS-422/485(D-SUB9Pin:1JA17JE-23090)
- SD Card (128 M) (pre-installed)
- instruction manual
